Luci SHIN Creide THOF
LCETHY
High efficacy LED series. Flat and crescent-shaped light with tilted beam angle, tunable white homogeneous rigid light with a selectable combination of two CCTs
APPLICATION

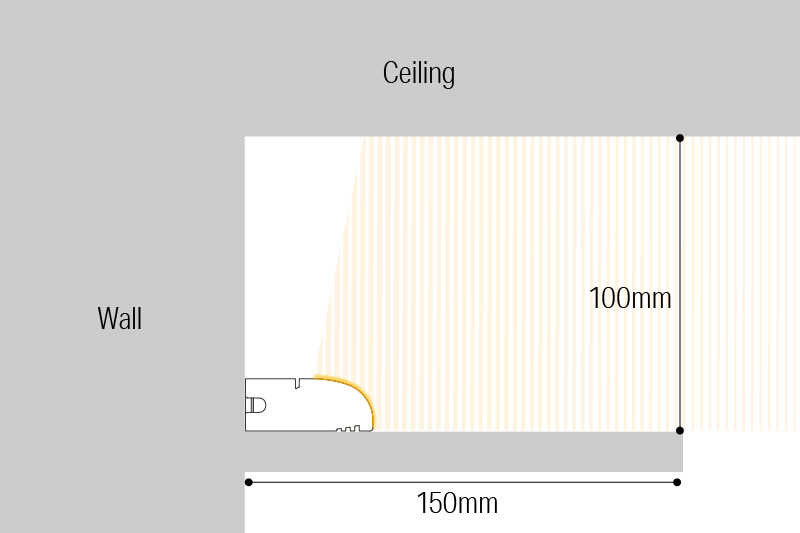

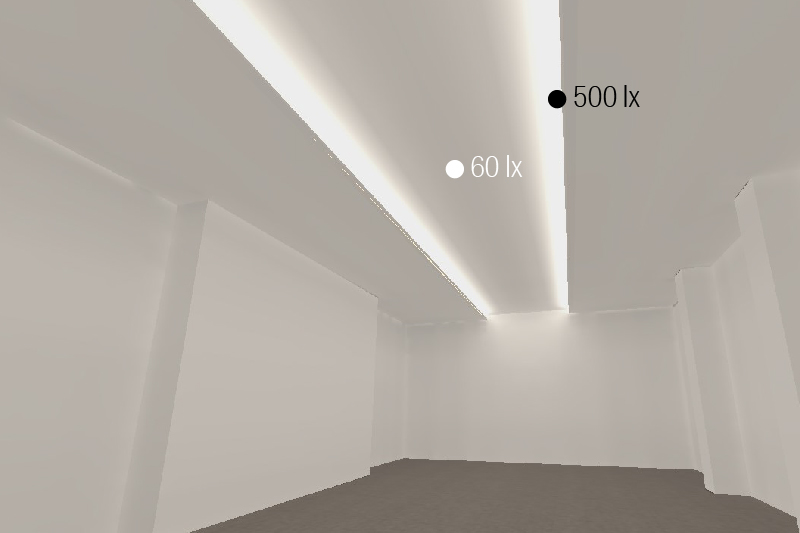

Ceiling cove
It is designed for tunable ceiling cove lighting for circadian lighting, delivering soft, uniform illumination with a high-efficiency output. Its precise optical control ensures smooth indirect lighting, reducing glare while enhancing architectural aesthetics. Ideal for luxury residences living room, hotels rooms and ball rooms, all day dining restaurant lobbies, theaters, and commercial spaces, it creates a warm, inviting ambiance with seamless integration into cove structures.

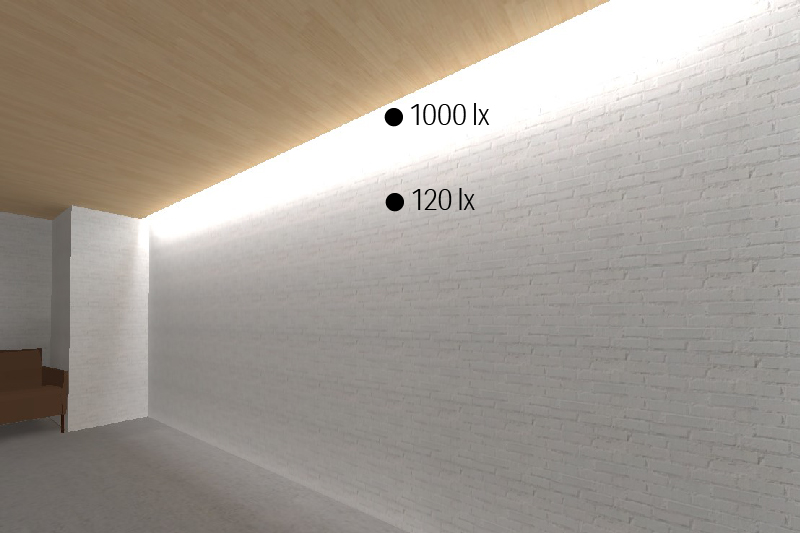

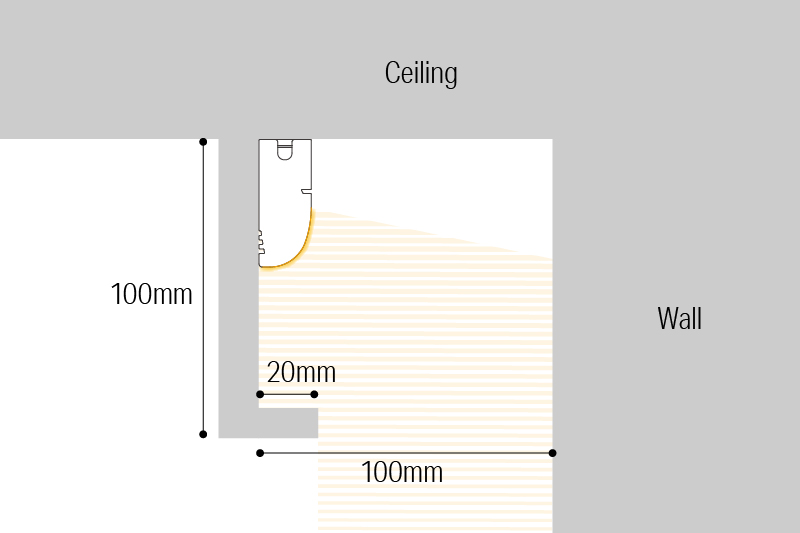

Wall wash
Ideal for tunable wall wash applications, it provides smooth, even illumination that emphasises vertical surfaces with soft, even light. Highly efficient optics minimise shadows and glare for clean, sophisticated lighting effects. Ideal for hotel lobbies and high-end residences where circadian effects are preferred, and for galleries, commercial spaces and high-end residences where colour temperatures need to be adjusted to suit the object or purpose, the stable brightness accentuates wall surfaces and architectural features.
DESIGN & INSTALLATION TIPS

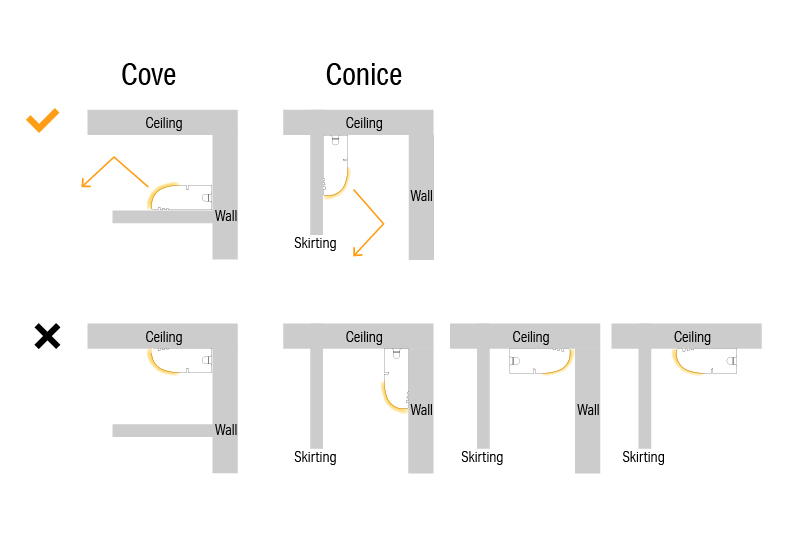

Correct installation
The luminaire emits light at an 15degree angle, so proper installation and orientation are crucial to achieving the desired lighting effect. Incorrect positioning may result in uneven illumination, glare, or misplaced light distribution. Ensuring the correct orientation allows for optimal light coverage, making the fixture effective for cove, wall grazing, or indirect lighting applications.

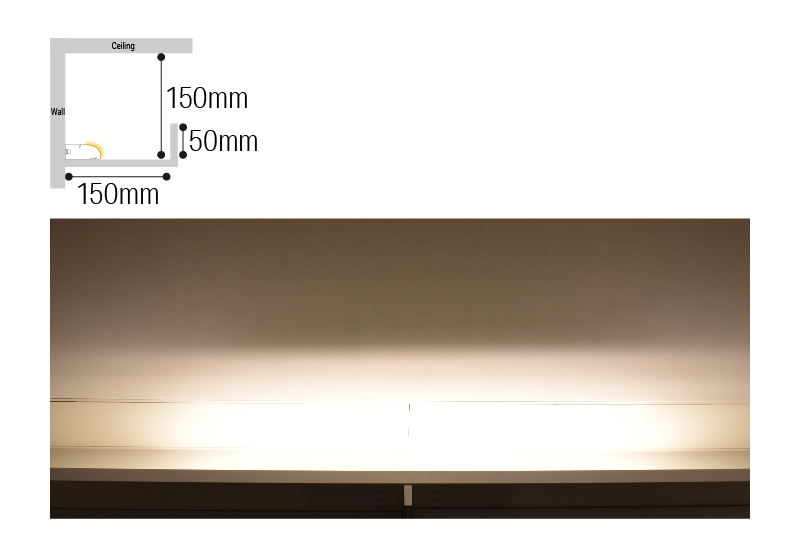

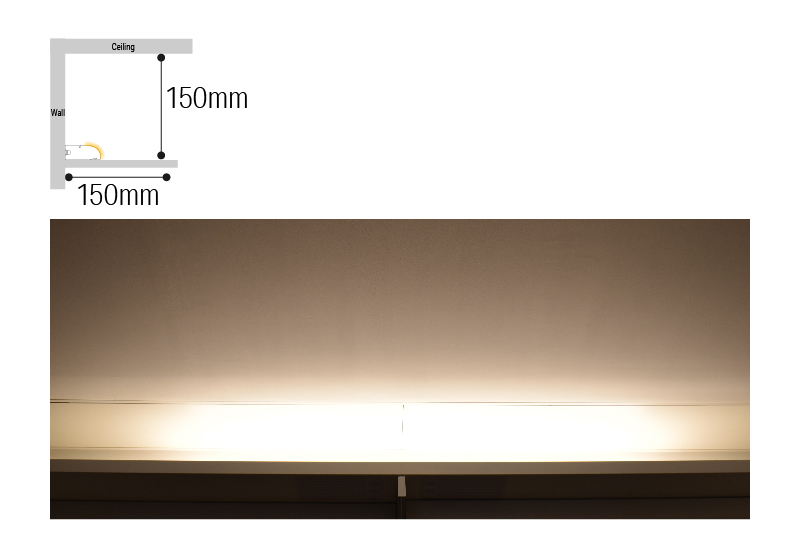

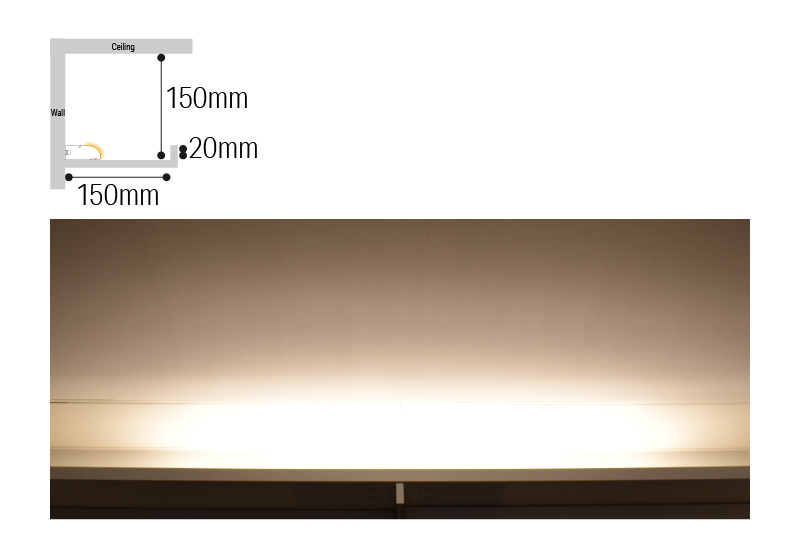

With or Without Pelmet ?
Pelmet affects lighting performance and glare control. Without a Pelmet, the light source remains fully visible, resulting in higher brightness but potential glare. Pelmet with same heights as lighting has no glare and fully conceals the light source, ideal for cove and accent lighting. Pelmet highler than light kills the light disctibution and creats shadow on the ceiling.

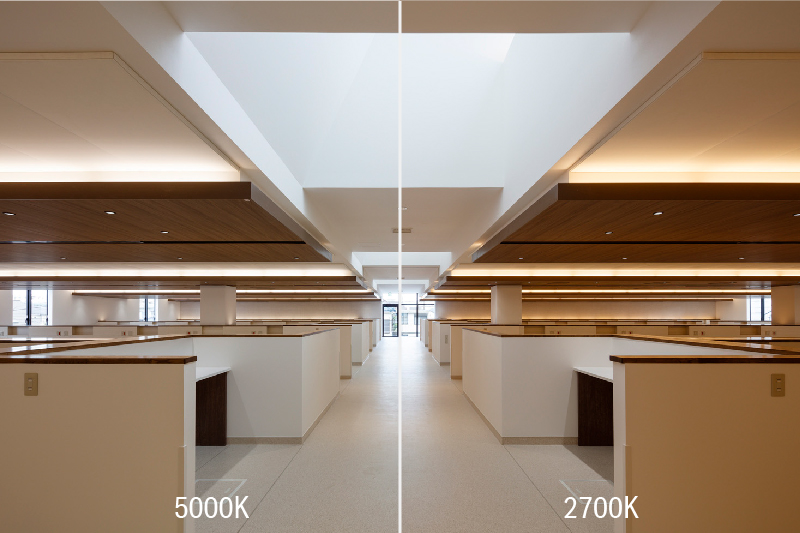

Tunable fixture need 2 channel driver
The luminaire operates with dual-channel control, allowing for precise dimming effects and customizable lighting patterns when used with compatible drivers and dimmers. This setup enables smooth transitions between brightness levels, supports tunable white or dim-to-warm effects, and enhances lighting flexibility for different environments.
By adjusting the two channels independently, users can create dynamic lighting scenes, making it ideal for architectural, hospitality, and commercial applications where customized ambiance and energy efficiency are essential.
FEATURE
-

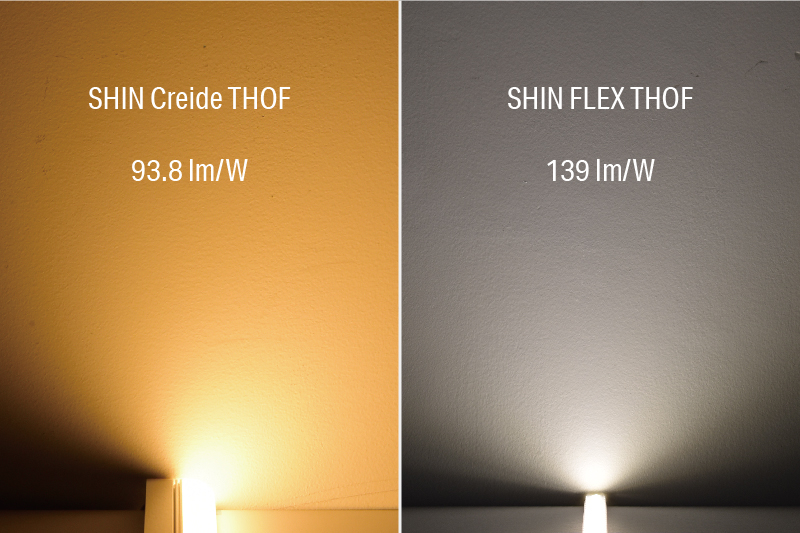

Fixtures comparison
It highlights the differences between this luminaire and a regular tape light, showcasing improvements in brightness, light distribution, and efficiency. Unlike standard tape lights, this luminaire features advanced optics, better diffusion, and more uniform illumination, reducing glare and hotspots.
-

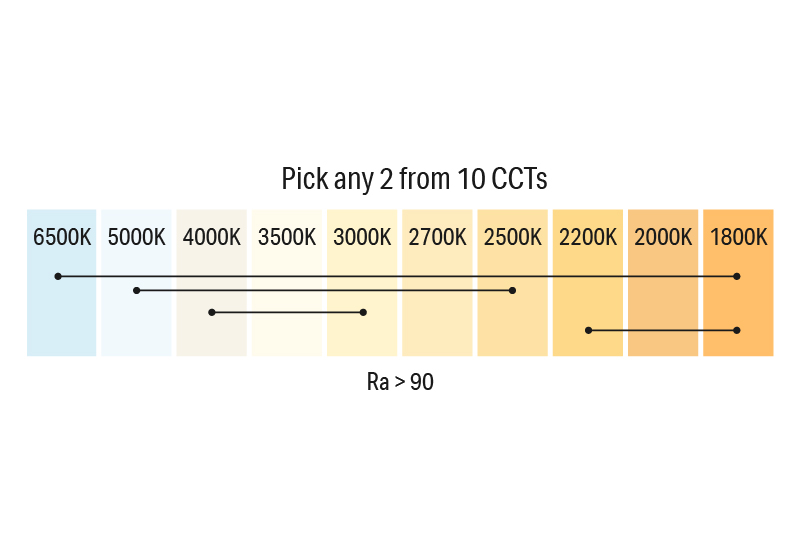

Dual-CCT Tunable System
It feature allows users to select any two CCTs from nine available options, providing a customizable tunable lighting solution for ceiling cove applications. This tunable option enables smooth transitions between selected warm and cool tones, enhancing ambiance and flexibility.
By combining any two color temperatures, users can create dynamic lighting effects that adapt to different moods and settings. This makes it an ideal solution for residences, hotels, lobbies, and commercial spaces where adjustable lighting enhances comfort and aesthetics. -

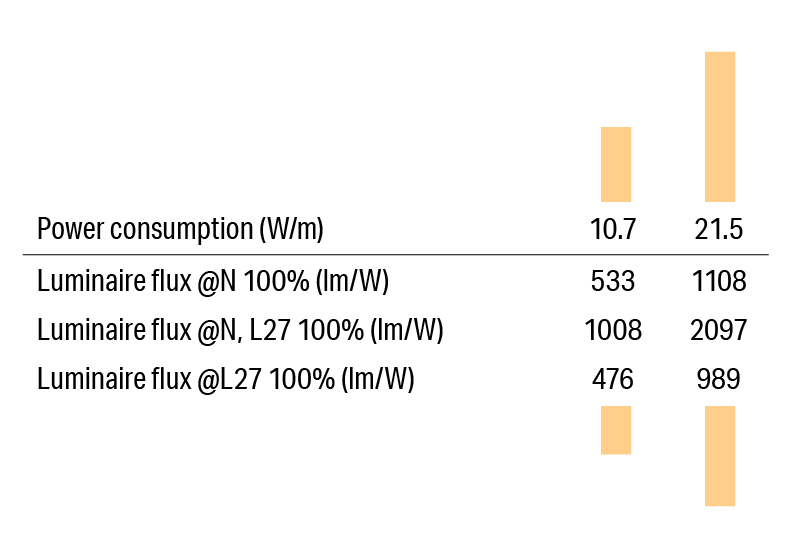

Wattage Variation
It offers two wattage options: 10W and 21W, providing flexibility based on brightness needs and energy efficiency. The 10W version is ideal for soft, ambient lighting, while the 21W version delivers higher output for brighter, more impactful illumination.
These variations allow for customized lighting solutions, making them suitable for ceiling coves, wall washing, and accent lighting in residential, commercial, and hospitality spaces. -

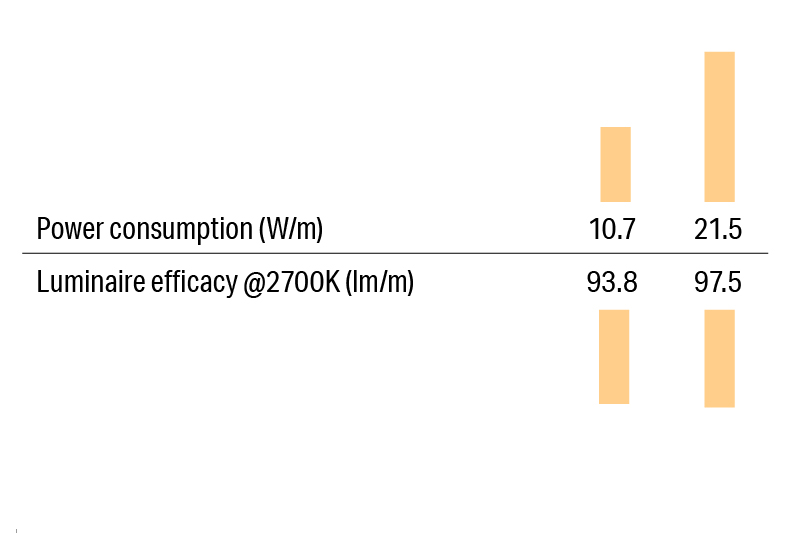

High Efficiency
It note indicates that while the luminaire provides quality illumination, it may not be the most energy-efficient option compared to other advanced LED solutions. It prioritizes brightness and performance over maximum efficiency, making it ideal for applications where light output and uniformity are more critical than energy savings.
-

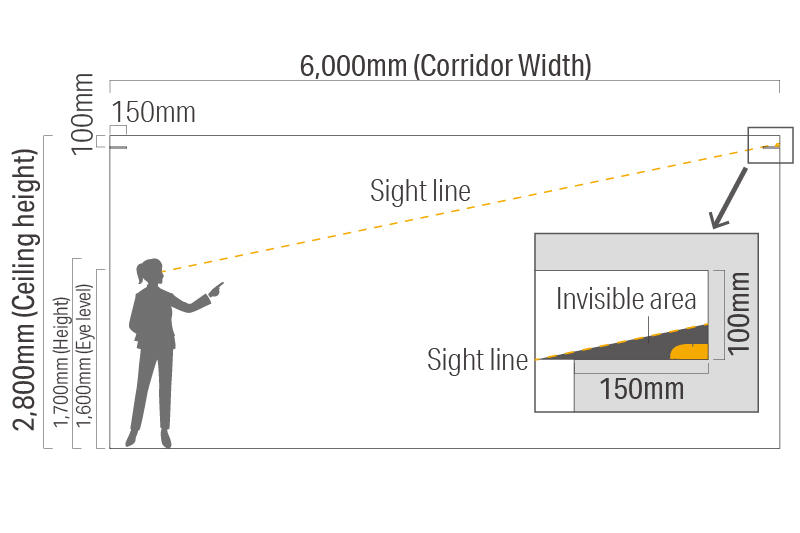

Invisible light without Pelmet

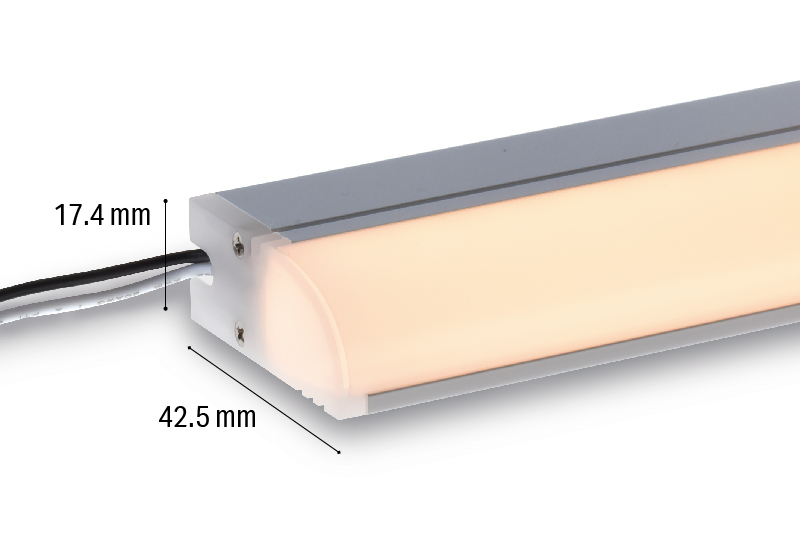

It emphasizes the fixture’s compact 17mm height, making it easy to conceal while still providing effective illumination. A cross-sectional illustration shows how the light extends outward, even with a shallow mounting space (low bosom), ensuring wide, uniform coverage. This design allows for seamless integration into architectural features like cove lighting and wall washing, maintaining a clean and unobtrusive aesthetic.
-

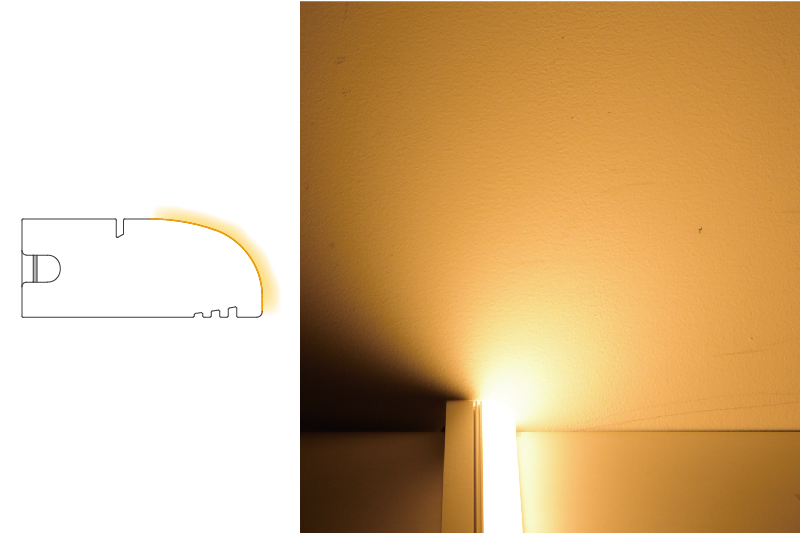

The crescent shape makes light go in diagonals
It highlights the crescent-shaped design, which helps spread light more evenly and widely. This shape ensures smooth, uniform illumination without harsh shadows, making it ideal for cove lighting, wall washing, and indirect lighting applications. It enhances ambient lighting while maintaining a sleek and discreet appearance in architectural spaces.
SPECIFICATION OVERVIEW
Product length: up to 1.4 m at every 100 mm length
Cable feed: Both ends feed cable
Max. length per run: 5m
Power Consumption: 2 variations, 10.7 W/m, 21.5 W/m
Lumen: 2700K - 5000K
10.8 W/m 533 lm/m @5000K, 1008 lm/m @3500K, 476 lm/m @2700K,
21.5 W/m 1108 lm/m @5000K, 2097 lm/m @3500K, 989 lm/m @2700K,
Color Temperature : Free to select 2 CCTs from 9 CCTs, 6500K, 5000K, 4000K, 3500K, 3000K, 2700K, 2500K, 2200K, 2000K, 1800K
IP Rating: Indoor
Materials: Aluminum, Polycarbonate
LED Type: High efficiency, long lifespan LEDs, >50,000h
