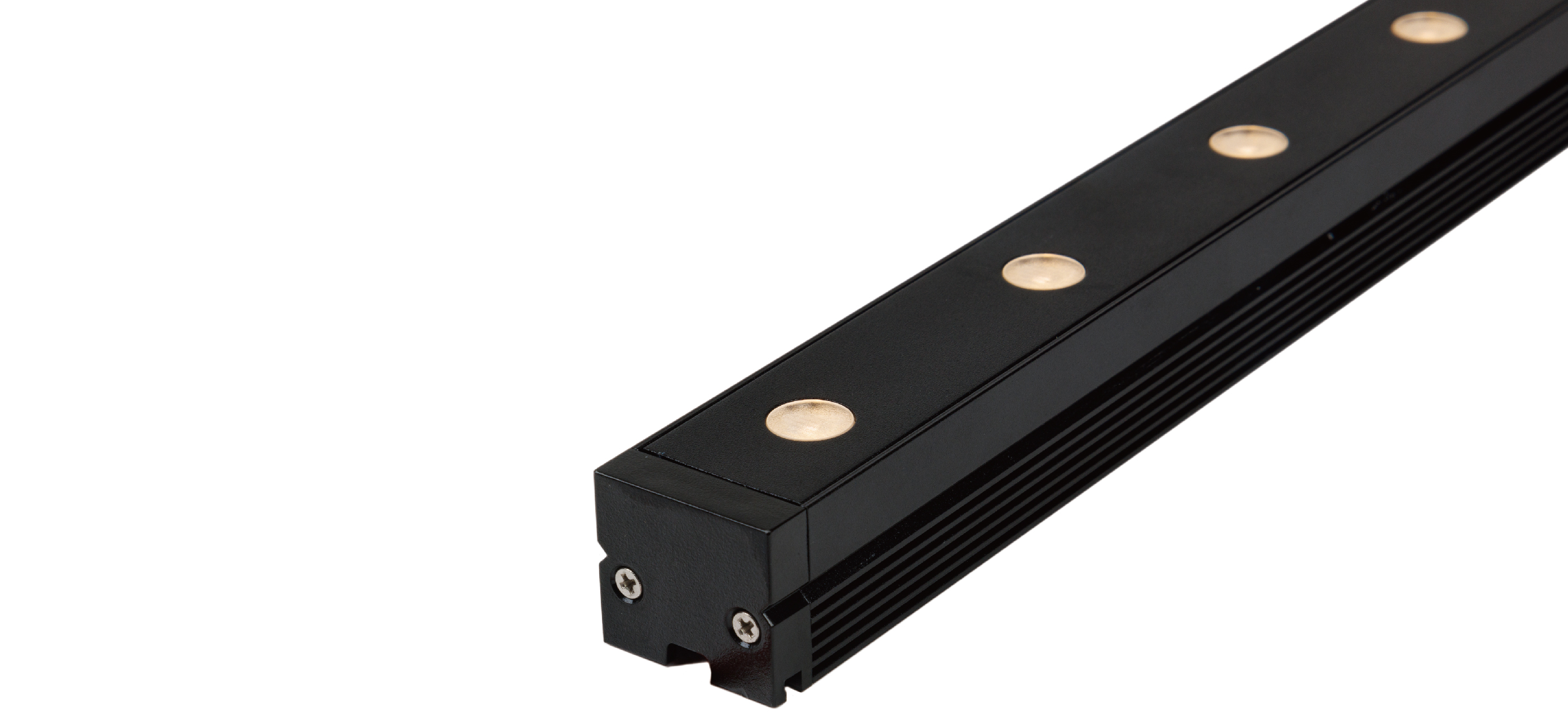

Luci Vivoxy Graze
LVV
Wall grazing light with a small cross-section and high CRI >90

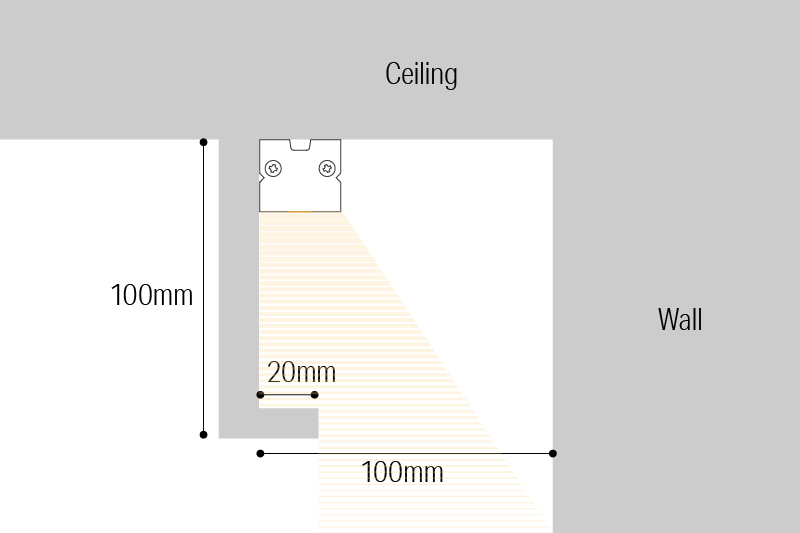

APPLICATION
Wall graze
An excellent choice for indoor wall grazing, featuring a 15° x 25° oval lens that delivers powerful, focused illumination. It is particularly well-suited for building lobbies, clubhouse entrances, and high-end residential spaces where strong accent lighting is required.
Despite its compact 25mm x 25mm size, the LVV produces an impressive 4000 lumens, making it easy to conceal while providing high-intensity lighting. Its powerful beam is ideal for highlighting high-ceiling walls, such as TV feature walls, creating a dramatic and sophisticated lighting effect.
DESIGN & INSTALLATION TIPS

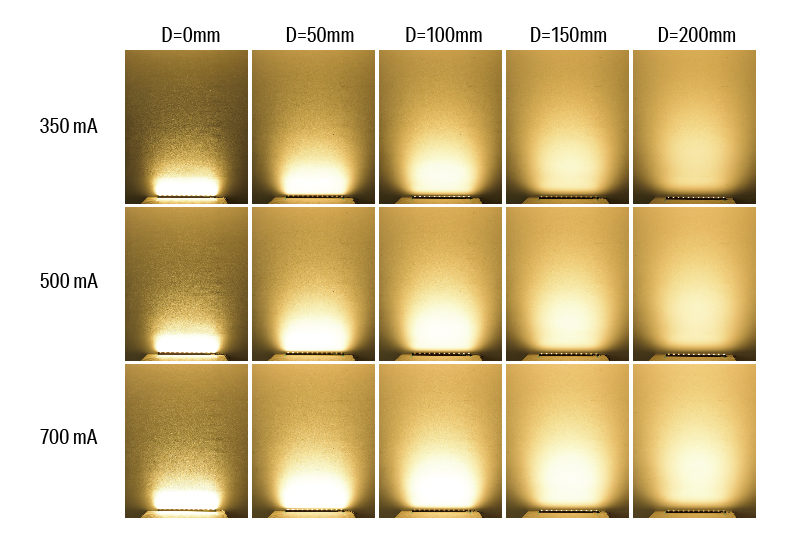

Impact of Offset Distance in Wall Grazing
The offset distance from the wall significantly affects the lighting effect in wall grazing applications.
A smaller offset creates a sharper, more defined light and shadow effect, enhancing textures and architectural details. A larger offset produces a softer, more diffused illumination, reducing contrast while providing even wall washing. Adjusting the offset allows for customized lighting aesthetics, making it adaptable for lobbies, entrances, feature walls, and high-end interiors.

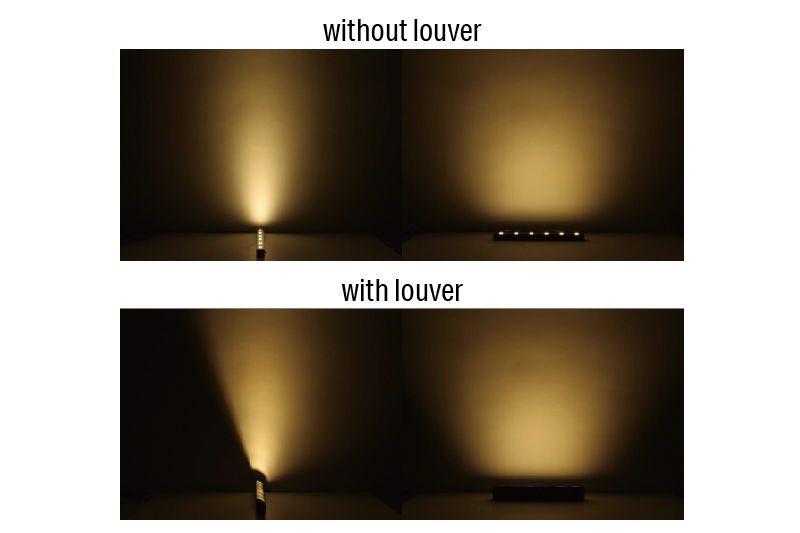

How Louvers Improve Lighting Quality and Focus
Louvers are essential accessories used to enhance light control and visual comfort in various applications. They help in minimizing glare, directing light precisely where needed, and reducing unwanted spill light, ensuring a more focused and refined illumination.
Louvers are particularly useful for wall grazing, accent lighting, and high-end architectural applications, where controlled lighting enhances textures, feature walls, and vertical surfaces. They are ideal for spaces such as lobbies, clubhouses, luxury residences, and galleries, where precise lighting control is required for both aesthetics and functionality.

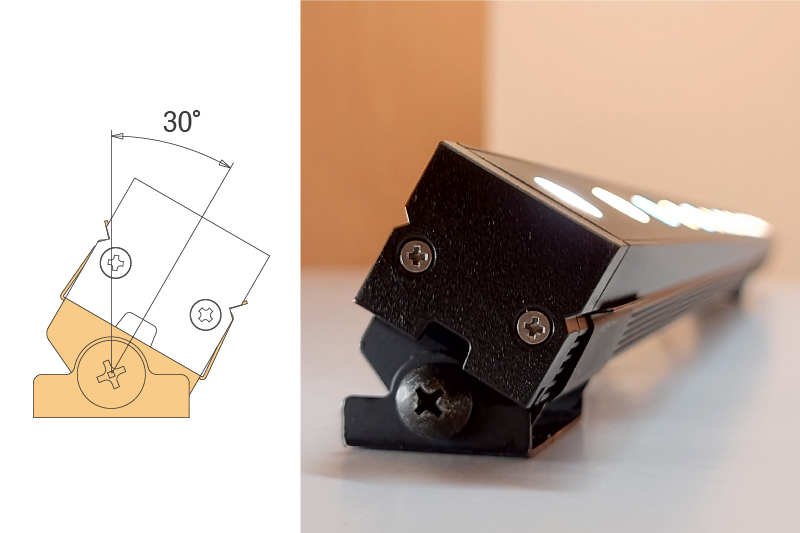

Adjustable and Angled Lighting for Precision Control
Simulation of adjustable and angled lighting allows for precise control over light direction and beam spread, ensuring optimal illumination for various applications. By adjusting the angle and positioning of the luminaire, users can achieve different effects, such as focused accent lighting, wall grazing, or wide ambient illumination.
In architectural and commercial lighting, adjustable fixtures enable customized lighting designs, adapting to high ceilings, textured surfaces, or feature walls. Angled installations help control glare, shadow effects, and uniformity, making them ideal for lobbies, galleries, residential spaces, and hospitality settings where tailored lighting enhances aesthetics and functionality.
FEATURE
-

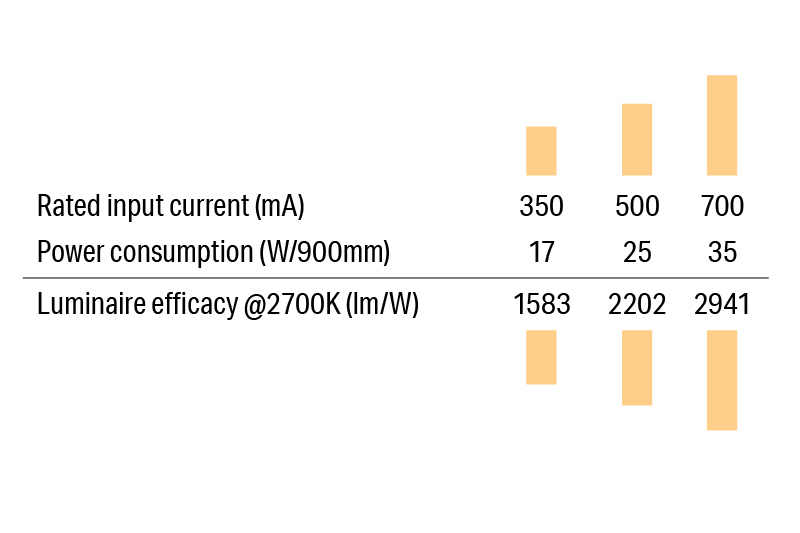

Brightness - Up to 2900 lm/m
It is the brightest indoor wall grazer, delivering up to 2900 lumens, making it a powerful yet compact lighting solution. Its high output in a small form factor sets it apart from competitors, offering exceptional brightness in a more discreet design.
-

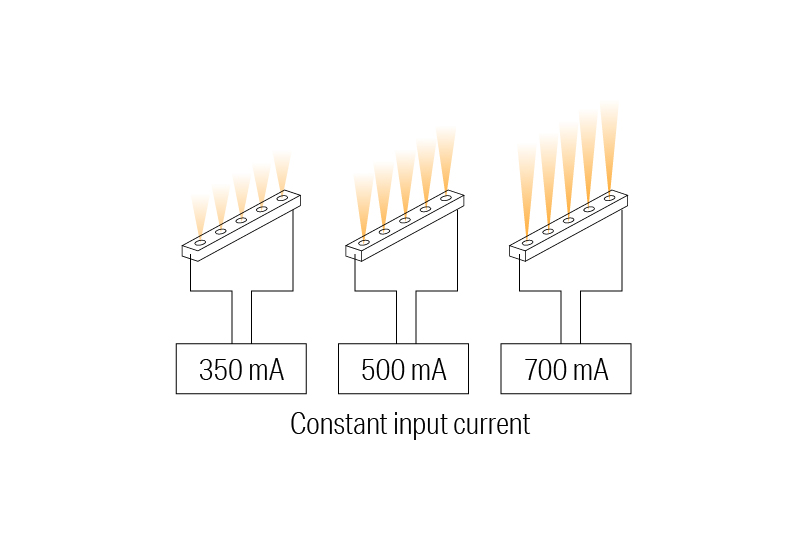

Brightness - Constant Color System
It uses a constant current system, brightness adjustment using 3 types of driver. This feature provides fine-tuned control over light output, making it easy to customize illumination levels based on installation needs and design preferences.
-

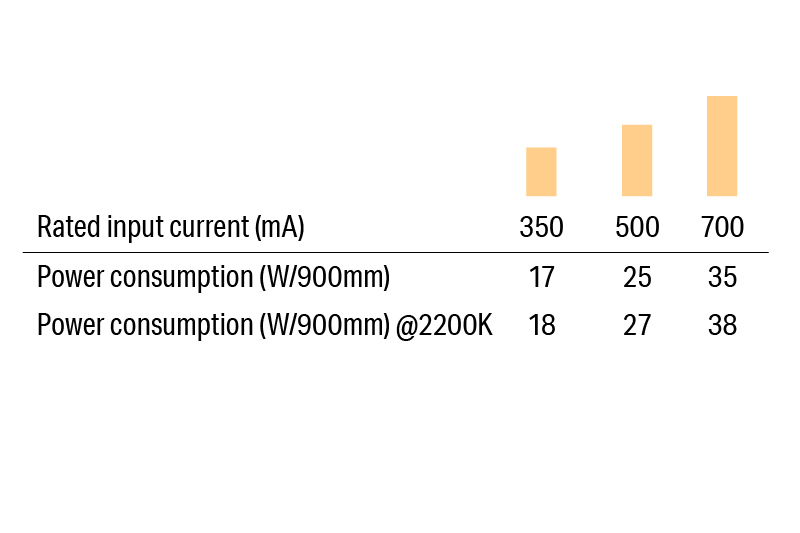

Ensure Correct Power Supply for L22 Model
Only the L22 model has a different power consumption, meaning it operates at slightly higher wattage compared to other CCT in the lineup. Please make sure to choose correct power supply within the voltage range to cover.
-

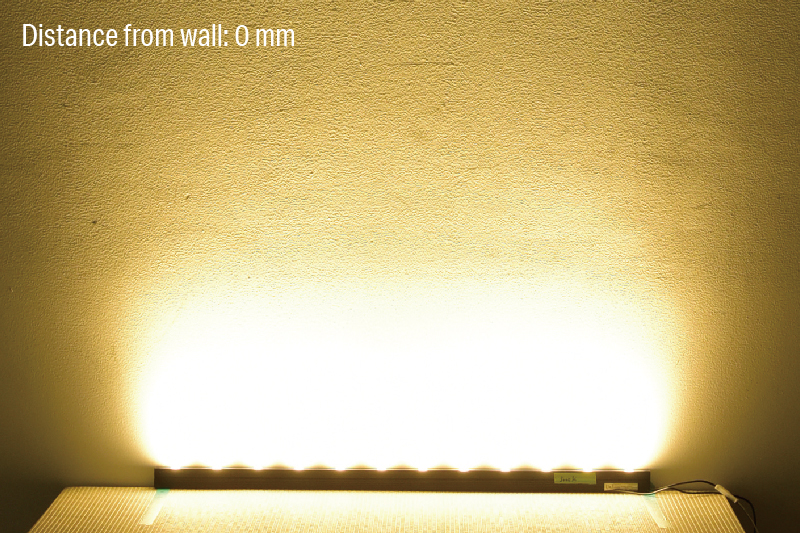

Luminaire Shape and Light
It features an oval lens design, which helps distribute light evenly and smoothly, reducing the likelihood of scalloping—the uneven, patchy lighting effect that occurs with narrow beam fixtures.
Thanks to this wide and elongated light distribution, the oval lens ensures consistent wall grazing and minimizes harsh shadows or gaps in illumination. -

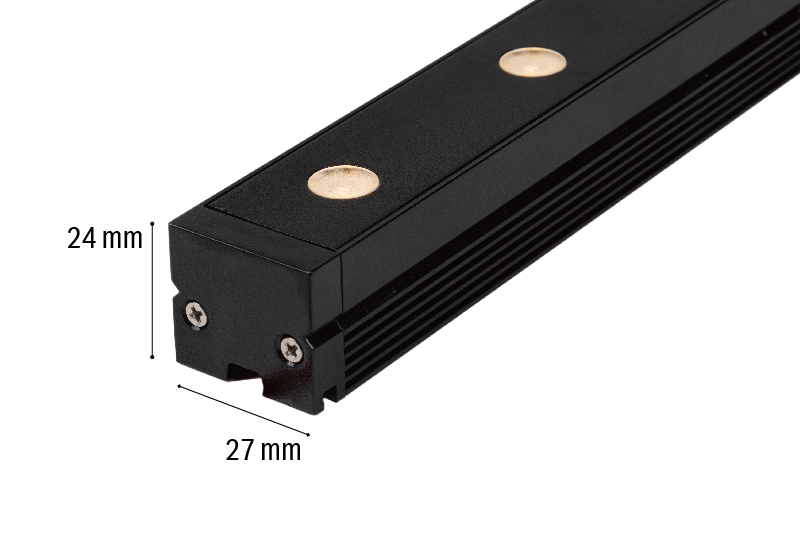

Compact Size
A compact size of 24mm*27mm or smaller, allowing for discreet and seamless integration into various lighting applications. Despite its small form factor, it delivers powerful illumination, making it ideal for architectural wall grazing, accent lighting, and high-end interior designs.
Its slim profile enables installation in tight spaces, such as narrow coves, recessed areas, or feature walls, without compromising brightness or performance. -

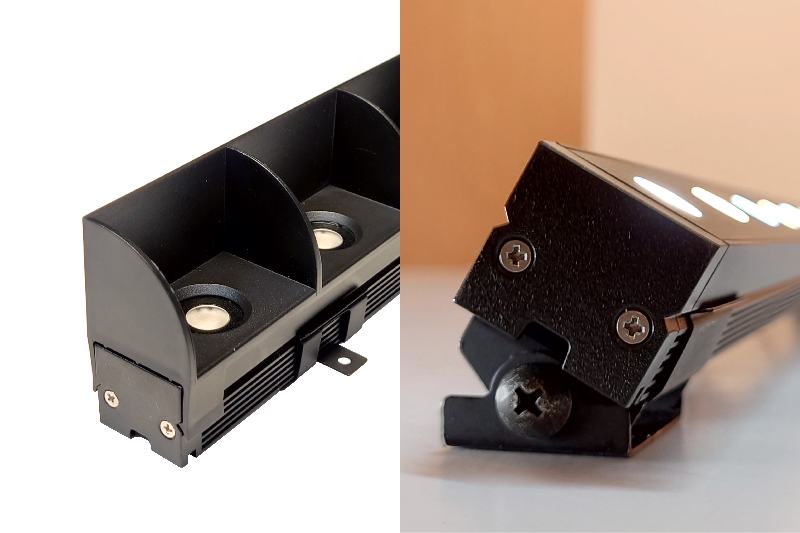

Enhanced Light Control with Optional Louvers and Adjustable Brackets
It offers optional louvers and adjustable brackets for enhanced light control and installation flexibility. Louvers reduce glare and direct light precisely, while adjustable brackets allow for fine-tuned angling, making them ideal for wall grazing, accent lighting, and high-end interiors. These accessories ensure a customized, professional lighting setup for architectural and commercial applications.
SPECIFICATION OVERVIEW
Product length: 4 variations, 300mm, 600mm, 900mm, 1200mm
Cable feed: Both ends feed cable
Input current: 350mA, 500mA, 700mA
Max. length per run: 350mA 6m (L22: 5.4m), 500mA 4.2m (L22: 3.6m), 700mA 2.7m (L22: 2.4m)
Power Consumption: @900mm 350mA 17 W (L22: 18 W), 500mA 25 W (L22: 27 W), 700mA 35 W (L22: 38 W)
Lumen: 1583 to 2941 lm/m @2700K
Color Temperature (delivered CCT): 5000K, 4000K, 3500K, 3000K, 2700K, 2200K
LED beam angle : 15°×32.5°
IP Rating: Indoor
Materials: Aluminum, Polycarbonate
LED Type: High efficiency, long lifespan LEDs, >50,000h
