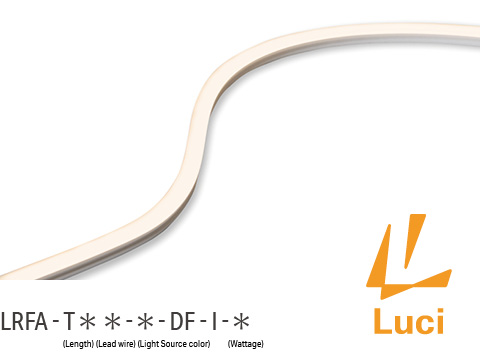

LRFA-I NEW
RIMiT flex alpha Indoor
- Flexible side-bend tape light with an incredibly compact square profile of only 11.2mm.
- Available for indoor or splash-proof specification
- 160 length variations from 25mm to 4000mm
- Two brightness options: 9W (572 lm/m) and 15W (830 lm/m)
LRFA-I
RIMiT flex alpha Indoor
Product information
Model No.
LRFA-T1000W-L27-DF-I-9
Specification9 : 9.7 W/m
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color | Delivered CCT
-
Max. length per circuit4 m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM, Casambi)
-
EnvironmentIndoor (no condensation)
-
CertificationCE
-
MaterialSilicone
Mounting options
-

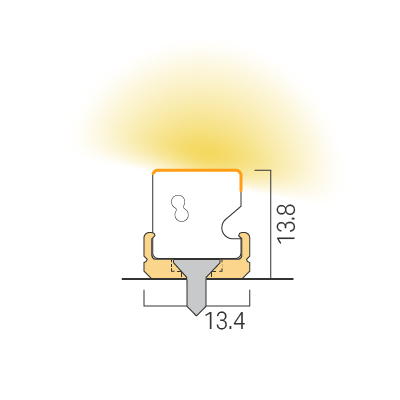

〈9W〉Straight installation／Mounting rail
-
1Mounting rail 1000 for RIMiT flex
LRF-RL1000
Straight installation
Magnet mounting available : Magnet set R for rail
-
-
〈9W・15W〉Straight installation／Aluminium mounting rail
-
2Aluminium Mounting rail 1000 for RIMiT flex
LRF-RL1000-AL
Straight installation
Magnet mounting available : Magnet set R for rail
-
-

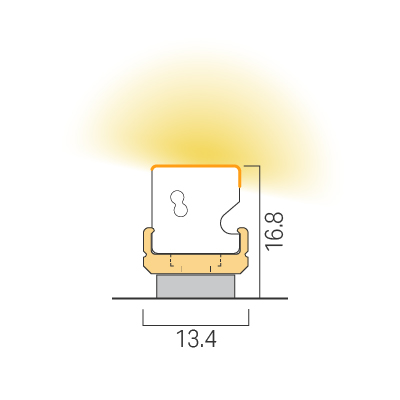

〈9W〉Straight installation／Mounting rail + Magnet
-
1Mounting rail 1000 for RIMiT flex
LRF-RL1000
Straight installation
Magnet mounting available : Magnet set R for rail -
7Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
〈9W・15W〉Straight installation／Aluminium mounting rail + Magnet
-
2Aluminium Mounting rail 1000 for RIMiT flex
LRF-RL1000-AL
Straight installation
Magnet mounting available : Magnet set R for rail -
7Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-

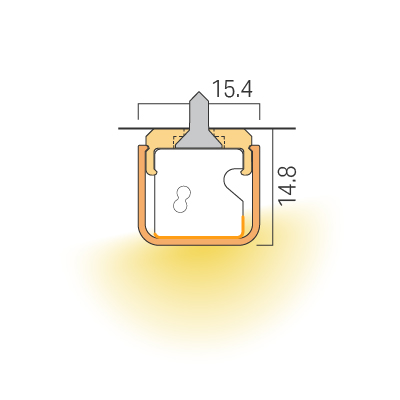

〈9W〉Straight installation／Downward／Mounting rail
-
1Mounting rail 1000 for RIMiT flex
LRF-RL1000
Straight installation
Magnet mounting available : Magnet set R for rail -
5Mounting parts Low 18 for SHIN UQ FLEX mini
LRFA-C1000
Fixing the light fixture to the mounting rail
-
-
〈9W・15W〉Straight installation／Downward／Aluminium mounting rail
-
2Aluminium Mounting rail 1000 for RIMiT flex
LRF-RL1000-AL
Straight installation
Magnet mounting available : Magnet set R for rail -
5Mounting parts Low 18 for SHIN UQ FLEX mini
LRFA-C1000
Fixing the light fixture to the mounting rail
-
-

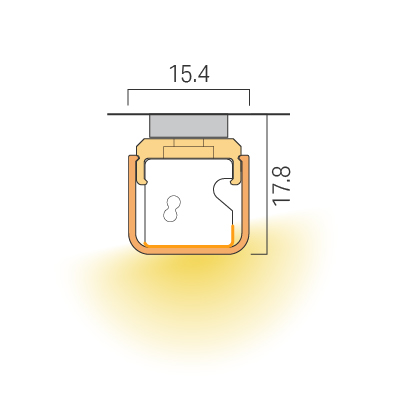

〈9W〉Straight installation／Downward／Mounting rail + Magnet
-
1Mounting rail 1000 for RIMiT flex
LRF-RL1000
Straight installation
Magnet mounting available : Magnet set R for rail -
5Mounting parts Low 18 for SHIN UQ FLEX mini
LRFA-C1000
Fixing the light fixture to the mounting rail
-
7Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
〈9W・15W〉Straight installation／Downward／Aluminium mounting rail + Magnet
-
2Aluminium Mounting rail 1000 for RIMiT flex
LRF-RL1000-AL
Straight installation
Magnet mounting available : Magnet set R for rail -
5Mounting parts Low 18 for SHIN UQ FLEX mini
LRFA-C1000
Fixing the light fixture to the mounting rail
-
7Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-

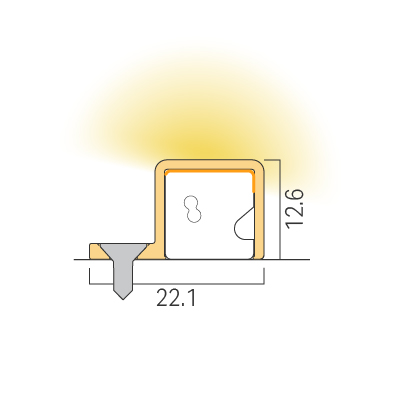

Curved installation／Mounting clip A
-
3Mounting clip A for RIMiT flex alpha
LRFA-PT-A
5pc / bag
Straight / Curved installation
-
-

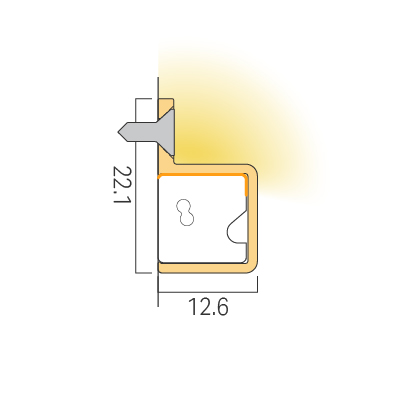

Curved installation／vertical installation／Mounting clip A
-
3Mounting clip A for RIMiT flex alpha
LRFA-PT-A
5pc / bag
Straight / Curved installation
-
-

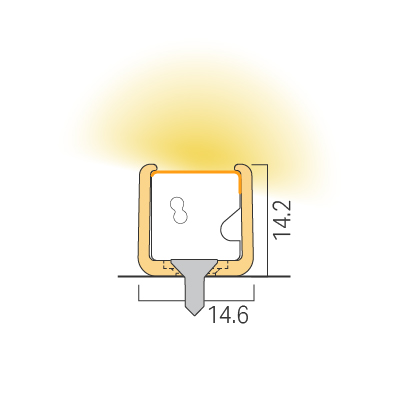

Curved installation／Mounting clip B
-
4Mounting clip B for RIMiT flex alpha
LRFA-PT-B
5pc / bag
Straight / Curved installation
Magnet mounting available : Magnet set A
-
-

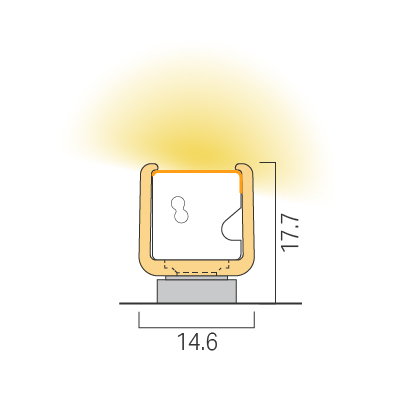

Curved installation／Mounting clip B + Magnet
-
4Mounting clip B for RIMiT flex alpha
LRFA-PT-B
5pc / bag
Straight / Curved installation
Magnet mounting available : Magnet set A -
8Magnet set A
MG-A
5 sets/bag
-
Accessories
-
6Outercap B for RIMiT flex alpha
LRFA-PT-C
-
9Power supply cable 3M with TR connector
CAD-3000-MEFE-O
-
10Clip J for Lead Wire
LRM-PT-J
Download
Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.
How to Install
Straight installation
Straight / Curved installation
