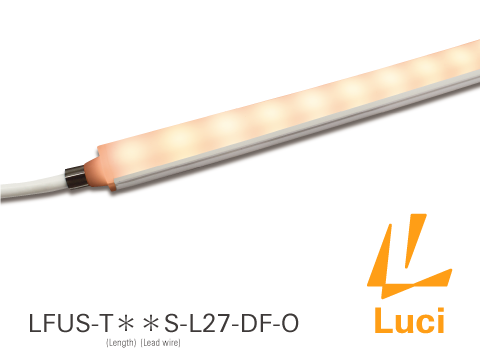

LFUS

UQ FLEX Sauna

  • High-temperature & humidity resistance, IP67
  • Covered with silicone, top-bend semi-diffused lighting
  • ANSIBIN
  • CE
  • Top bend
  • 1 Year Warranty

Product information

Model No.

LFUS-T1000WS-L27-DF-O

Detail
Length
Lead wire
Feed direction

HINT

Feed direction

Light source color

SpecificationLength1038Lead wire S : One ends

  • Input
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color


    Please refer to the Specification sheet for the Delivered CCT.
    L27:2700K 234lm Ra 83
  • Max. length per circuit
    5m
  • Dimmable
    Yes (0-10V/1-10V, DMX, DALI, PWM)
  • Environment
    Indoors, Outdoors
  • Certification
    CE, JISC0920, IP67
  • Operating Temperature
    -0°C ~ +100°C (Working humidity up to 95%)
  • Material
    Silicone

Mounting options

  • Curved installation / Clip

    Curved installation / Clip

    • 1SUS Mounting clip for UQ FLEX (5pcs / bag)

      LFU-RC-B

      For curved or straight installation

  • Straight installation / Rail

    Straight installation / Rail

    • 2Aluminum mounting rail 950 set for UQ FLEX

      LFU-RL0950-AL-C

      The set include Mounting rail (1pc) , SUS Hold clip (5 pcs/bag) and Joint plate (1pc)

Accessories

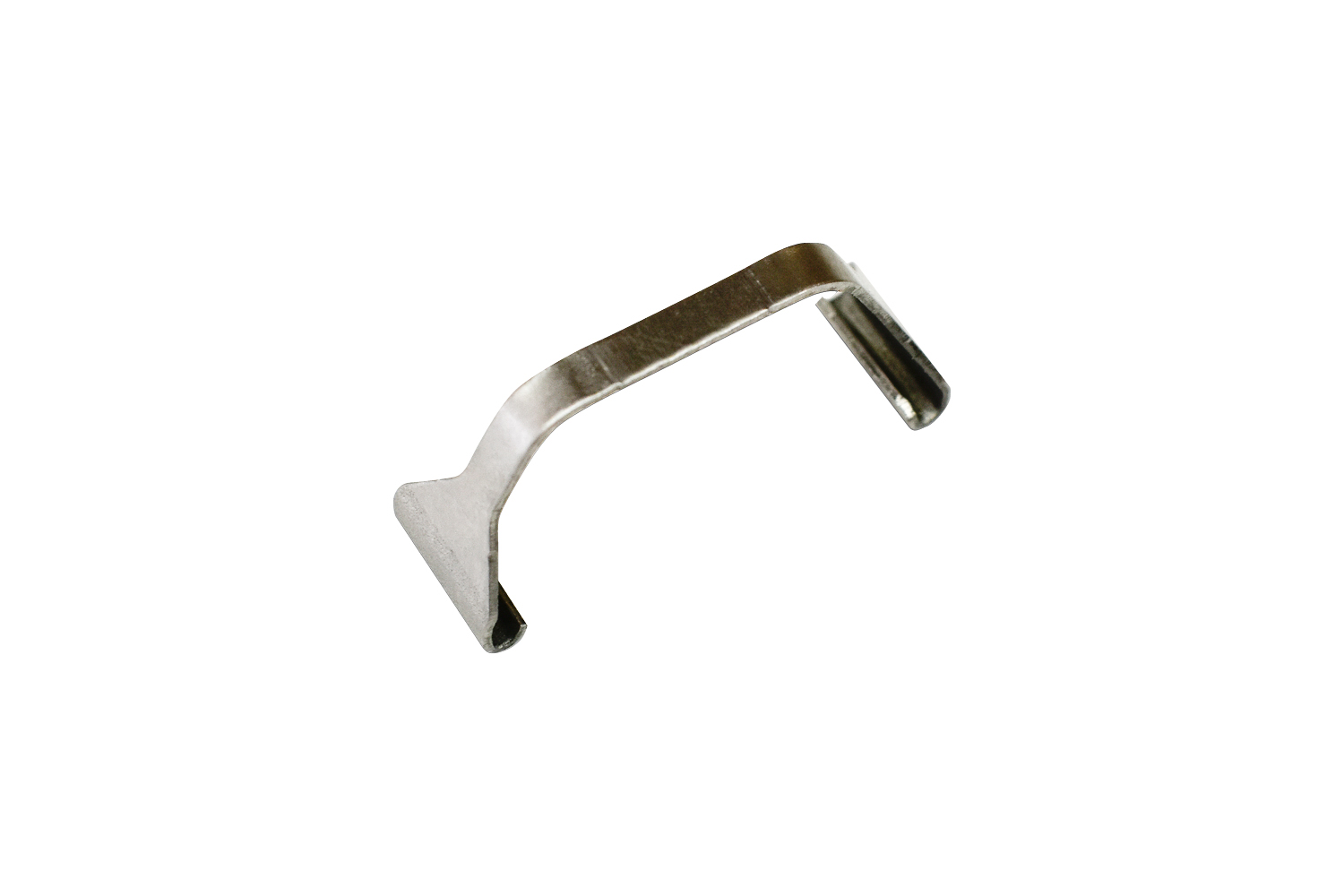

  • 3SUS hold Clip for UQ FLEX aluminum rail (5pcs / bag)

    LFU-PT-C

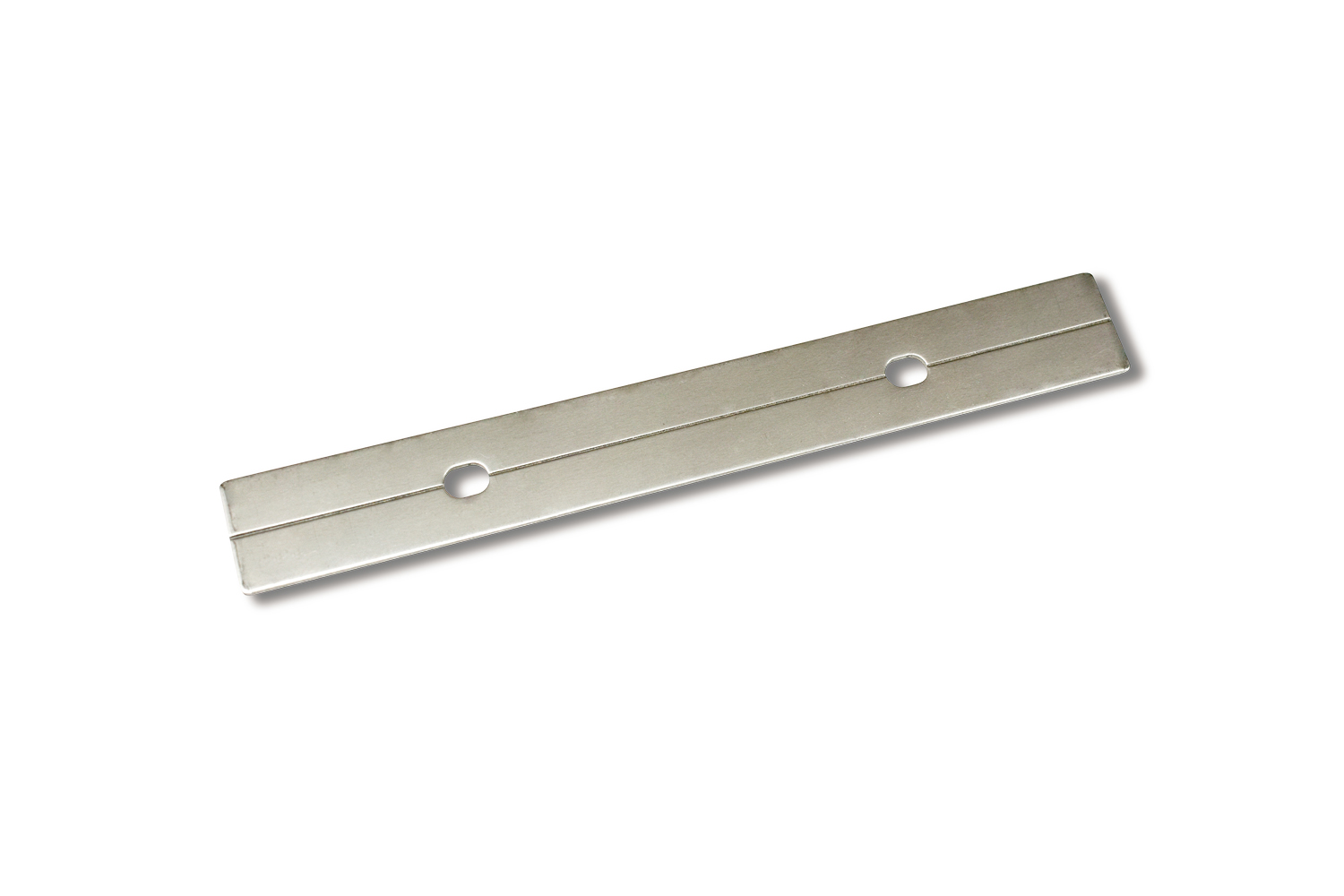

  • 4Joint Plate for UQ FLEX aluminum rail (1pc / bag)

    LFU-PT-E

  • 5Power supply cable 10M for UQ FLEXRequired

    CAD-V010M-FPNN-O

  • 6Joint cable 1M for UQ FLEX

    CAD-1000-MPFP-O

Download

How to Install

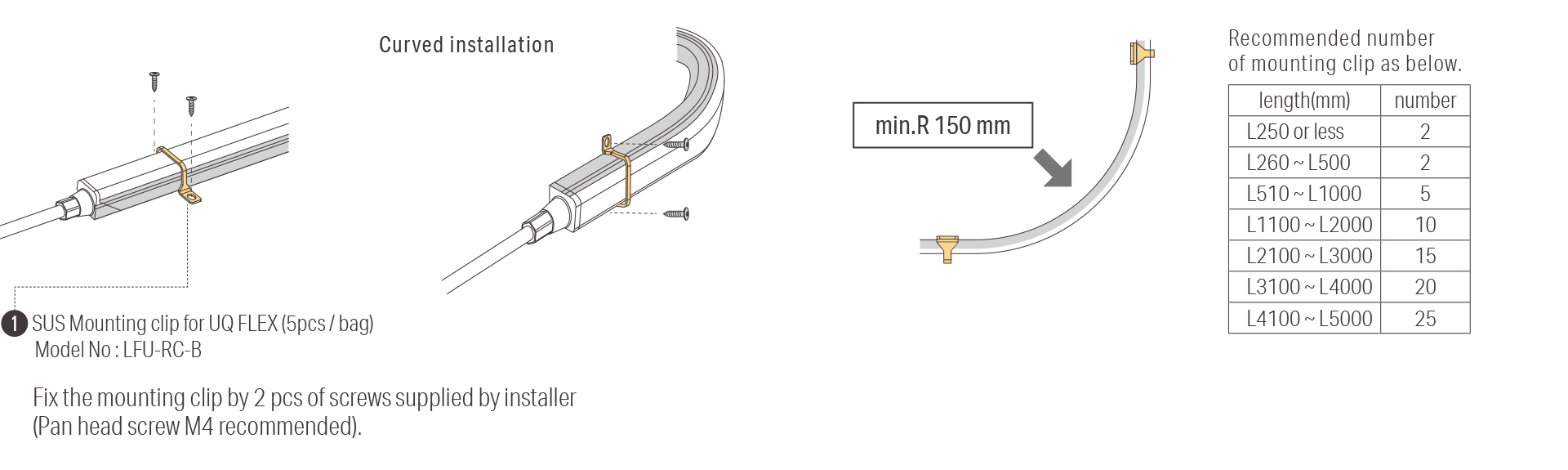

Installation with Mounting clip

Installation with Mounting clip

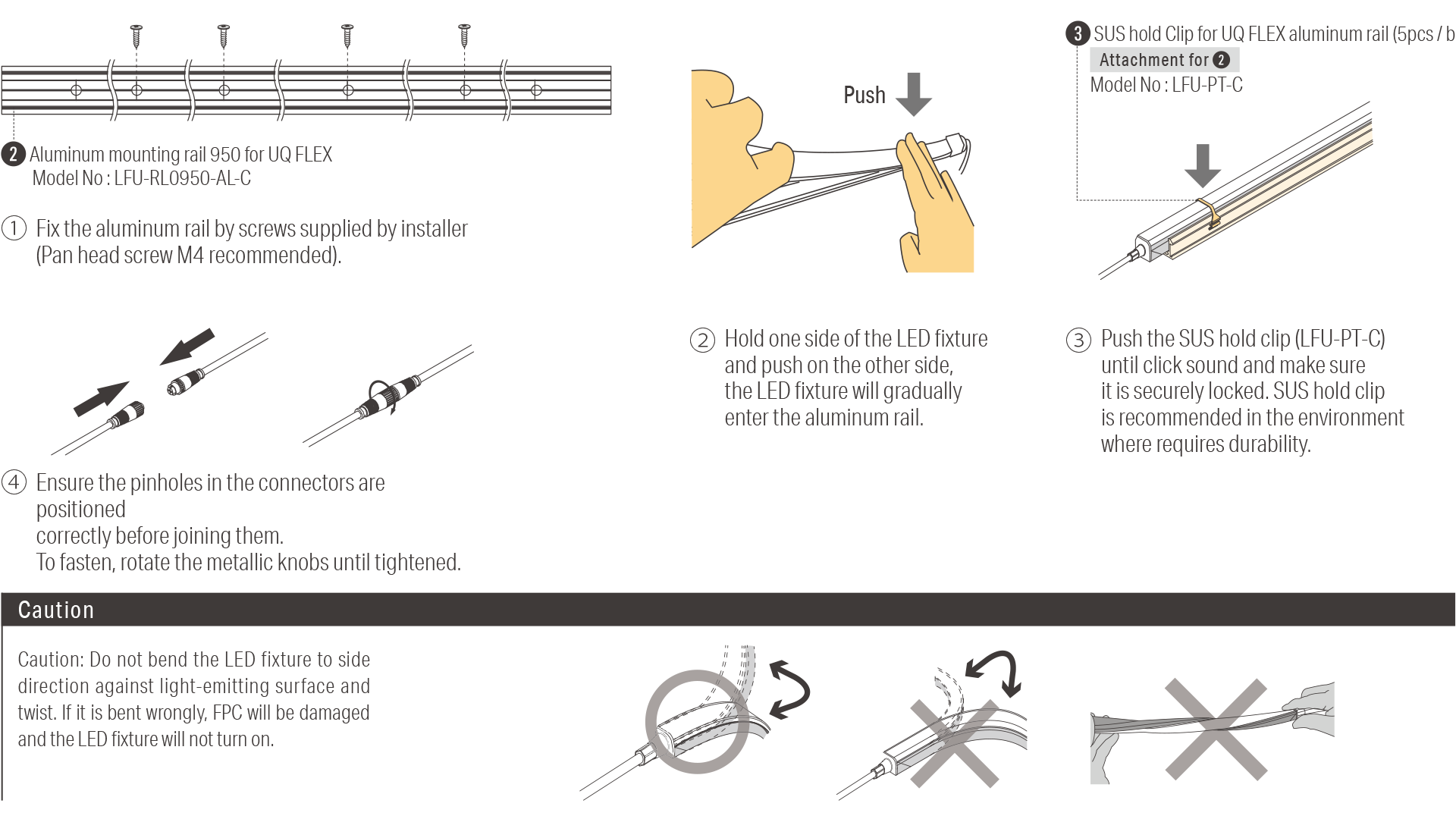

Installation with Mounting rail

Installation with Mounting rail

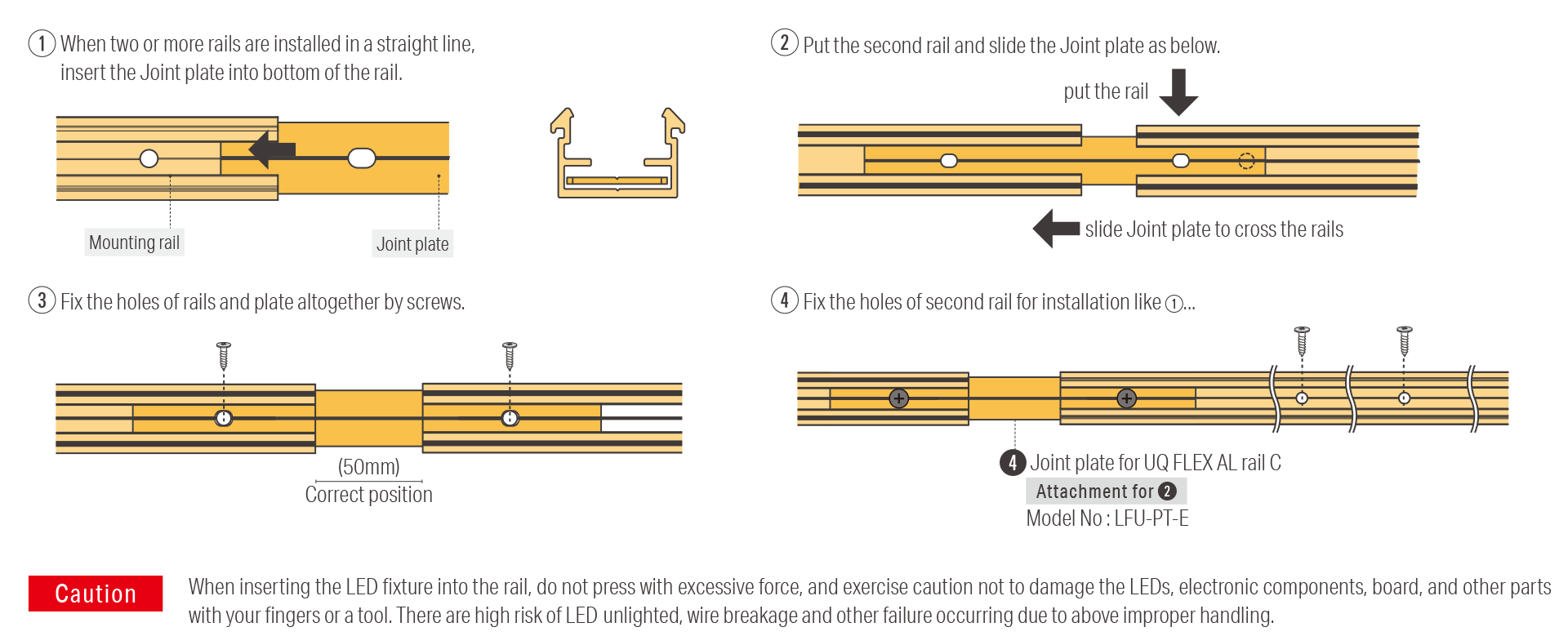

Installation with mounting rail (When the length of the LED fixture is longer than 1m)

Installation with mounting rail (When the length of the LED fixture is longer than 1m)
