LVF

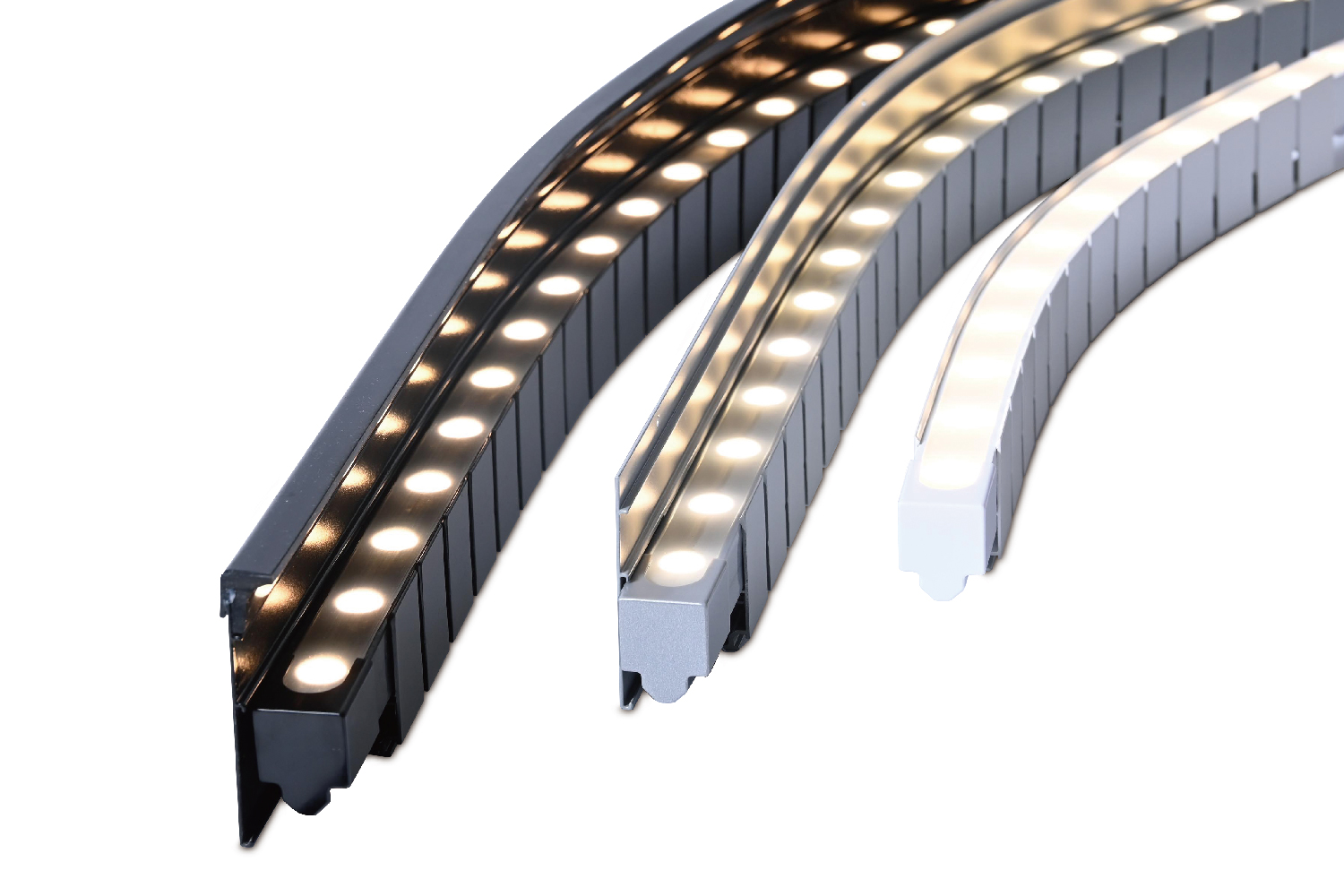

Vivoxy FLEX IP67

  • Wall grazing light for organic design
  • Bendable Horizontally and Vertically in R500mm
  • Adjustable bracket and Shield options available
  • MacAdam3steps
  • CE
  • Top bend
  • Side bend

Product information

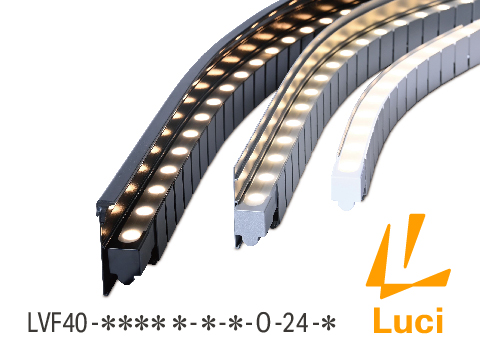

Model No.

LVF40-1000W-L27-SP2-O-24-G

Detail
Length
Light source color
Lead wire
Beam angle
Body color
Wattage

SpecificationLength1000

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color
  • Max. length per circuit
    5 m
  • Dimmable
    Yes (0-10V/1-10V, DMX, DALI, PWM)
  • Environment
    In & Outdoor, IP67
  • Certification
    CE
  • Material
    Silicone

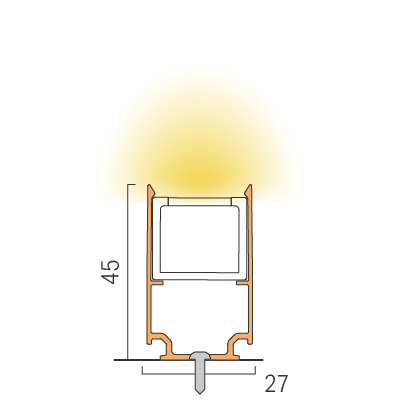

Mounting options

  • Straight & Curved installation / Rail

    Straight & Curved installation / Rail

    Straight & Curved installation / Rail

    • Bendable AL rail 1000 for Vivoxy FLEX

      1Bendable AL rail 1000 for Vivoxy FLEX

      LVF-RL1000-AL-W (White)
      LVF-RL1000-AL-G (Gray)
      LVF-RL1000-AL-B (Black)

      Min. bending range 1000mm

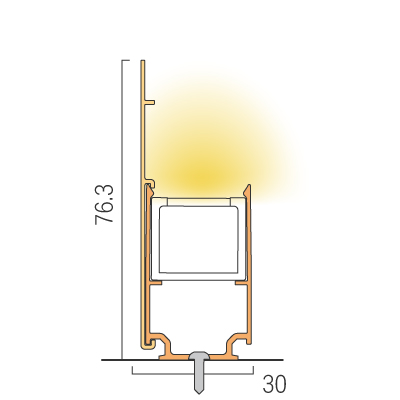

  • Straight & Curved installation / Rail / Glare cut

    Straight & Curved installation / Rail / Glare cut

    Straight & Curved installation / Rail / Glare cut

    • Bendable AL rail 1000 for Vivoxy FLEX

      1Bendable AL rail 1000 for Vivoxy FLEX

      LVF-RL1000-AL-W (White)
      LVF-RL1000-AL-G (Gray)
      LVF-RL1000-AL-B (Black)

      Min. bending range 1000mm

    • Glare cut shield with silicone for LVF 1000

      3Glare cut shield with silicone for LVF 1000

      LVF-GSS1000-W (White)
      LVF-GSS1000-G (Gray)
      LVF-GSS1000-B (Black)

      Min. bending range 1000mm

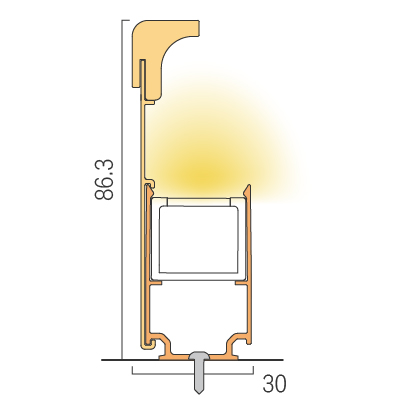

  • Straight & Curved installation / Rail / Glare cut

    Straight & Curved installation / Rail / Glare cut

    Straight & Curved installation / Rail / Glare cut

    • Bendable AL rail 1000 for Vivoxy FLEX

      1Bendable AL rail 1000 for Vivoxy FLEX

      LVF-RL1000-AL-W (White)
      LVF-RL1000-AL-G (Gray)
      LVF-RL1000-AL-B (Black)

      Min. bending range 1000mm

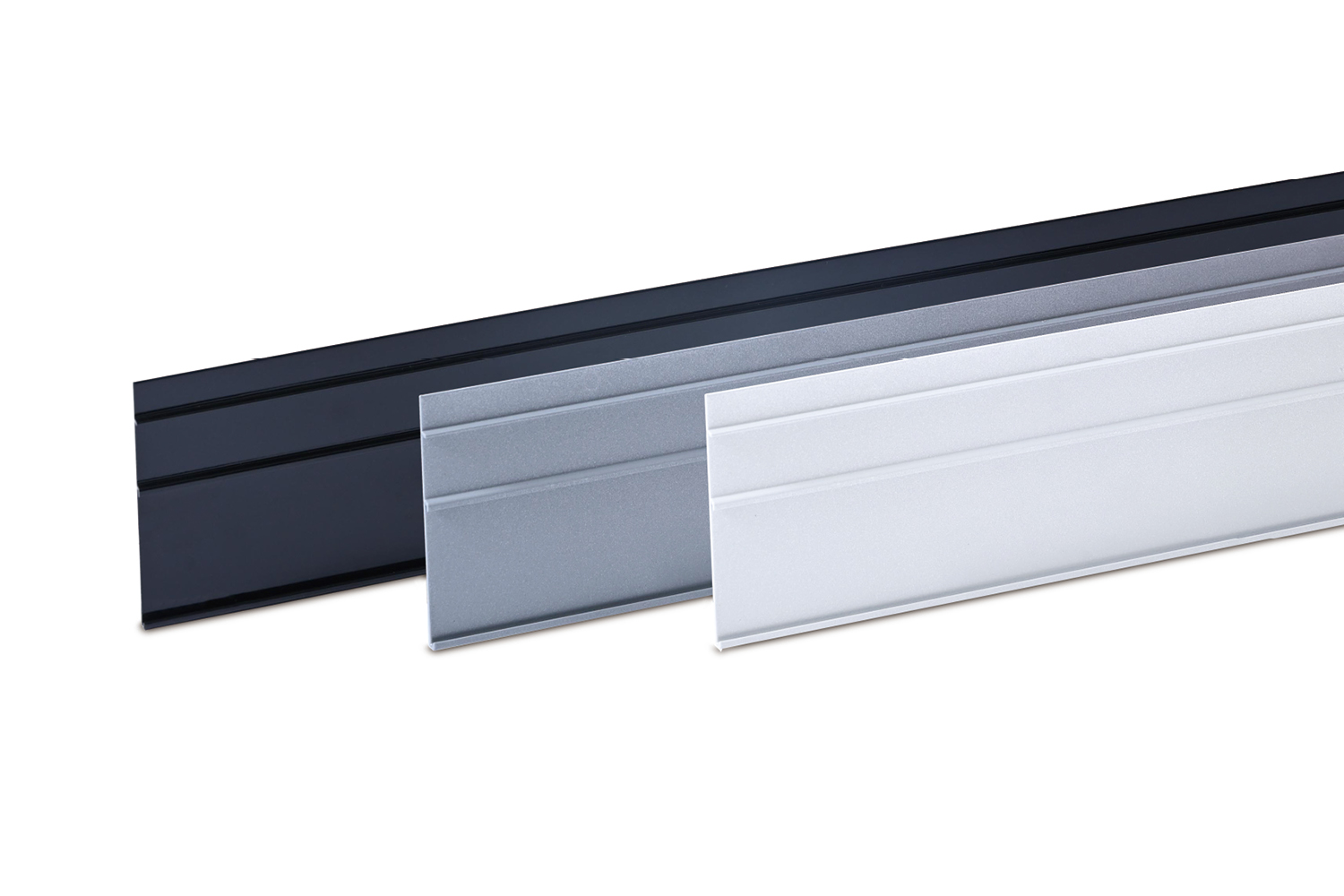

    • Glare cut shield for LVF 1000

      4Glare cut shield for LVF 1000

      LVF-GS1000-W (White)
      LVF-GS1000-G (Gray)
      LVF-GS1000-B (Black)

      Min. bending range 1000mm

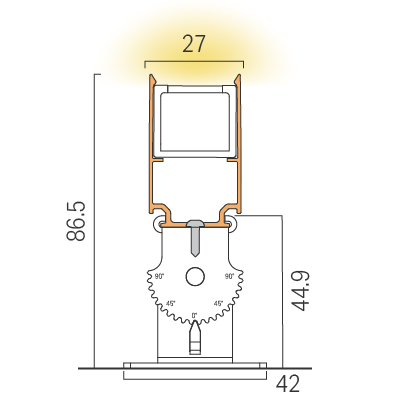

  • Straight & Curved installation / Rail / Adjustable

    Straight & Curved installation / Rail / Adjustable

    Straight & Curved installation / Rail / Adjustable

    • Bendable AL rail 1000 for Vivoxy FLEX

      1Bendable AL rail 1000 for Vivoxy FLEX

      LVF-RL1000-AL-W (White)
      LVF-RL1000-AL-G (Gray)
      LVF-RL1000-AL-B (Black)

      Min. bending range 1000mm

    • Adjustable SUS bracket for LVF rail

      5Adjustable SUS bracket for LVF rail

      LVF-PT-A

      5 pcs/bag

  • Straight & Curved installation / Parts

    Straight & Curved installation / Parts

    Straight & Curved installation / Parts

    • Mounting Parts for Vivoxy FLEX

      2Mounting Parts for Vivoxy FLEX

      LVF-RL0030-AL-W (White)
      LVF-RL0030-AL-G (Gray)
      LVF-RL0030-AL-B (Black)

      5 pcs/bag

Accessories

  • Power supply cable 10M for Vivoxy FLEX

    6Power supply cable 10M for Vivoxy FLEXRequired

    CAD-V010M-FQNN-O

  • Joint cable 1M for Vivoxy FLEX

    7Joint cable 1M for Vivoxy FLEX

    CAD-V1000-MQFQ-O

Download

DownloadDownload

How to Install

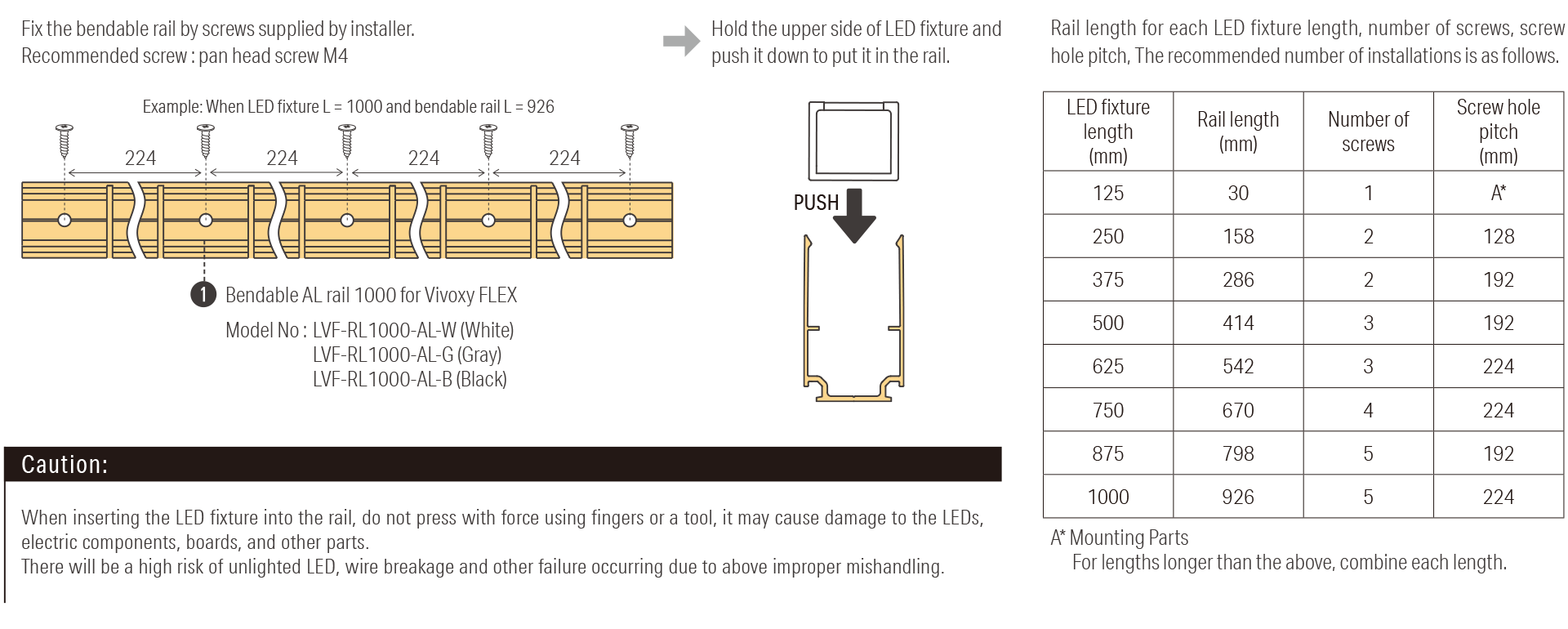

Installation with bendable rail

Installation with bendable rail

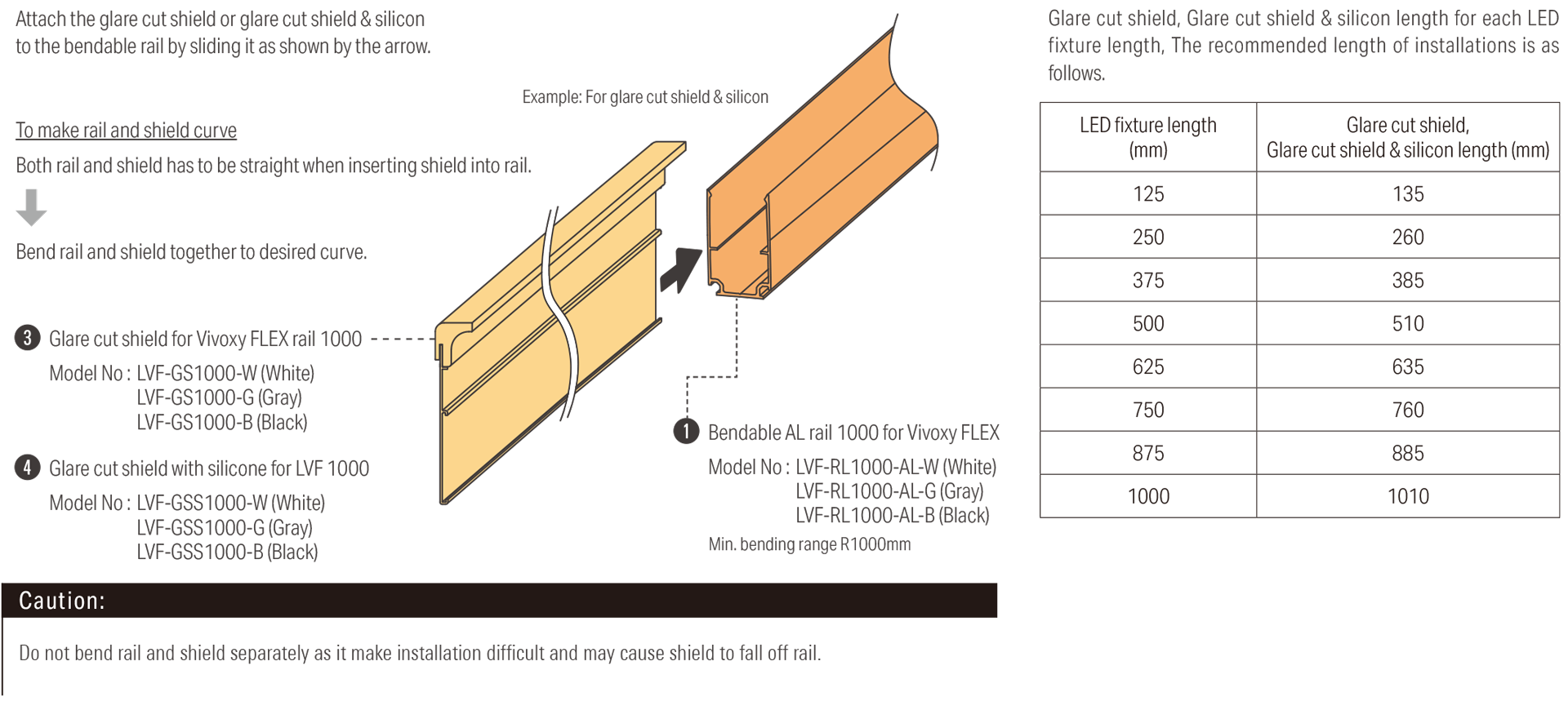

Installation of glare cut shield, glare cut shield & silicon on bendable rails

Installation of glare cut shield, glare cut shield & silicon on bendable rails

Installation of adjustable brackets on bendable rail

Installation of adjustable brackets on bendable rail

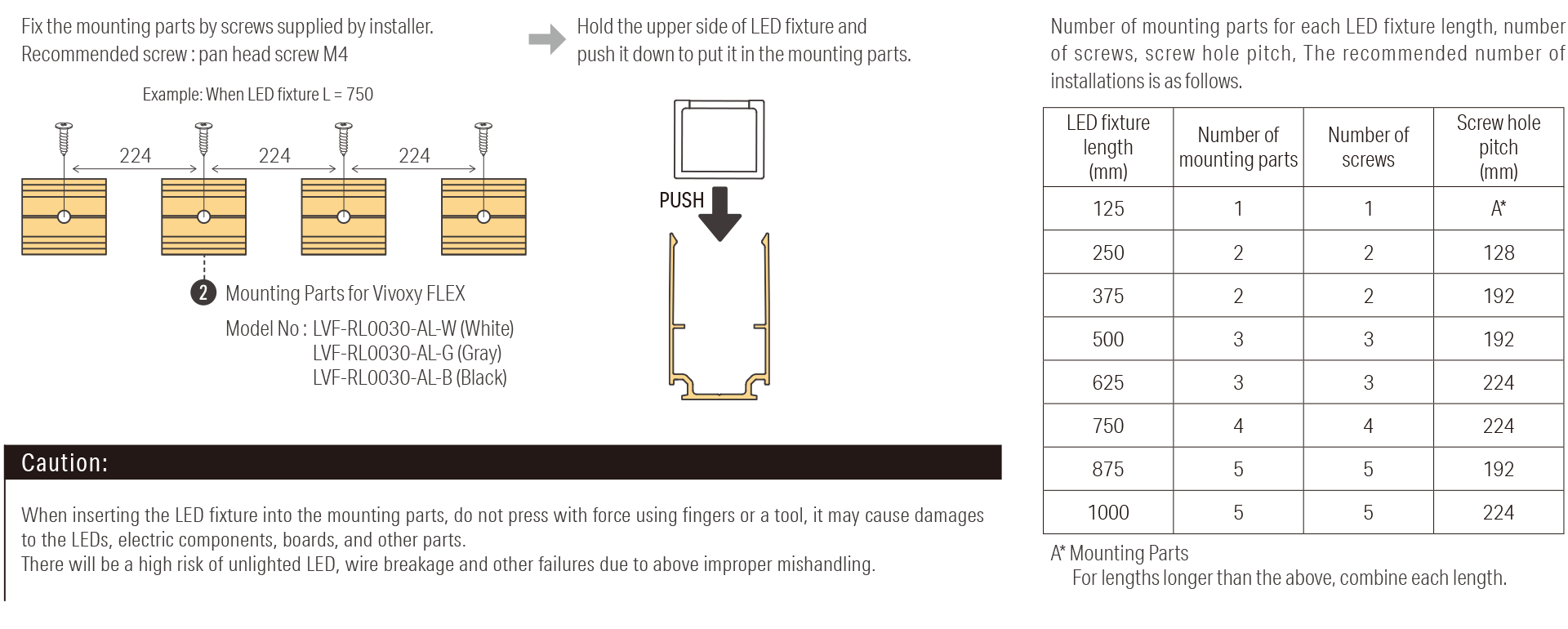

Installation with mounting parts

Installation with mounting parts

Works

  • TOTAL TOOTH TREATMENT

    TOTAL TOOTH TREATMENT

    Japan

    Education / Medical / Welfare Guest / Living / Bed room

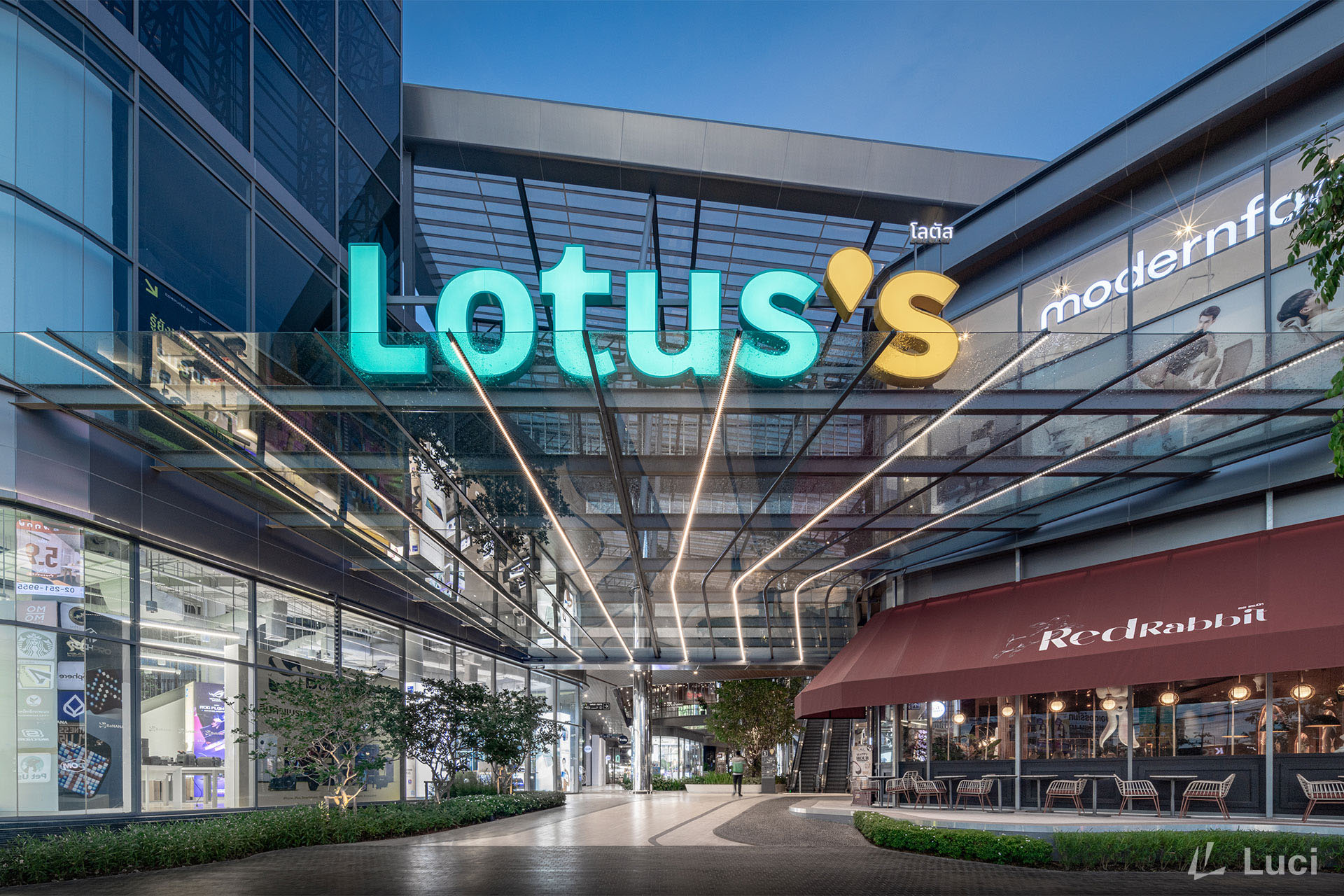

  • Lotus's North Ratchapreuk

    Lotus's North Ratchapreuk

    Thailand

    Retail /service Entrance / Lobby / Common area
