Luci ORILEGA 145W/75W/30W 24V

  • Quality policy of Luci ORILEGA
  • In-house designed electric circuit and housing
  • Reliability test and safety test conducted by our company and third-party test laboratory
  • Ongoing operation test in high-temperature circumstance (60℃)
  • Production process under Luci own standards and one hundred percent inspection
  • PSE対象
  • CE
  • RoHS
  • Luci ORILEGA 145W/75W/30W 24V

LPSOL

Luci ORILEGA 145W/75W/30W 24V

Product information

Model No.

LPSOL-145-24-ND-I

Detail
Rated output power

Specification

  • Classification
    Constant voltage
  • Output DC voltage
    DC24V
  • Rated output voltage(W)
  • Ripple voltage
    Less than 50mV
  • Temperature protection
    Device stop functioning when ambient temperature is over 80℃
  • Material of outer case
    Polycarbonate(UL94-V0:Self-extinguishing)
  • Form of outer case 1
    PC isolated case
  • Form of outer case 2
    Equipped with raised base
  • Input method
    Black(L), White(N), Green (Earth)
  • Output method
    Black(DC+), White(DC-)
  • Dimming
    Dimmer driver is needed for dimming usage (Low noise type)
  • Output extension length
    VCTF0.75sq:20m VCTF1.25sq:30m
  • Certification
    PSE (AC100 ~242V)
    CE
    RoHS
    IEC61000-3-2 Class C
    CISPR11, CISPR15
    JIS C 8115 Sound level requirement

Download

How to
connect

Installing the product

When installing this product, please make sure that screws are used and are fixed tightly (round head screw M4 x 12mm or longer is recommended).
Screws are not provided with the product.

Installing the product

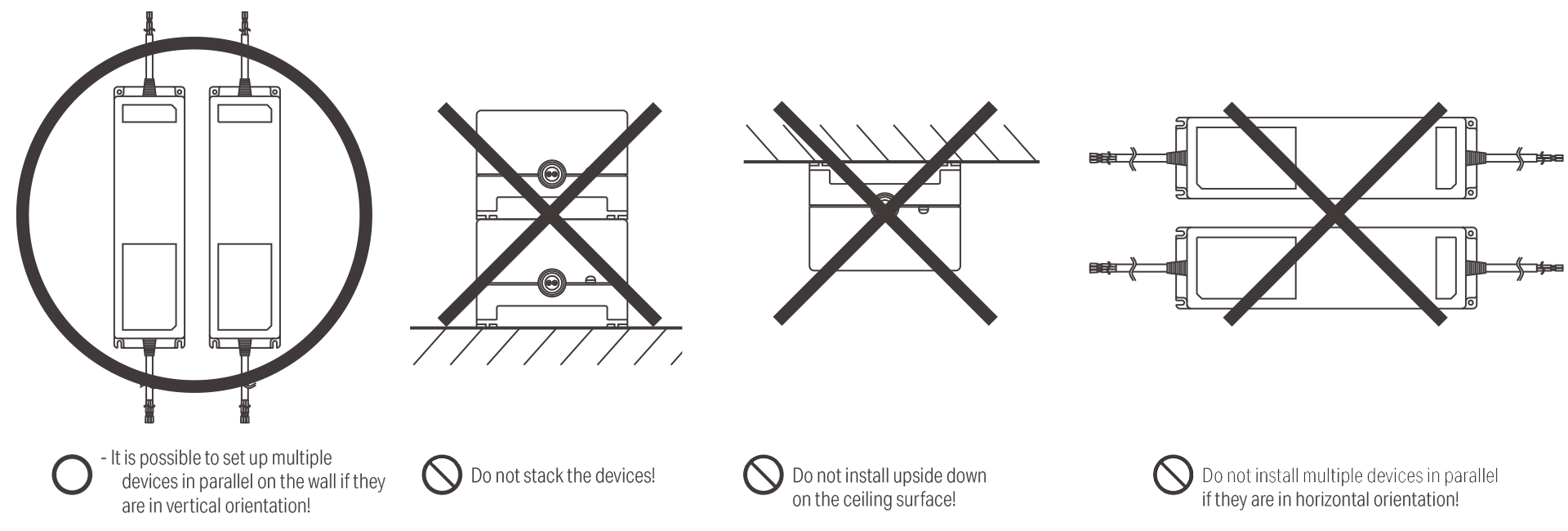

Installing two products side by side

Installing two products side by side

Installing two products side by side
