LVVTH

Vivoxy Graze THOF

  • For grazing light with spread lens 15°x 32° with High CRI LED
  • 3 different brightness by choosing 350mA, 500mA or 700mA C.C driver
  • Adjustable bracket and louver options available
  • MacAdam
  • CE

Product information

Model No.

LVVTH50-1000NL27-SP-I

Detail
Rated input current
Length

SpecificationSize1000Pitch20

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color
  • Max. length per circuit
    5m
  • Dimmable
    Yes (Tunable white driver is required)
  • Environment
    Indoors (no condensation)
  • Certification
    CE
  • Material
    Aluminum(black), Polycarbonate
  • Attachments
    Mounting fixture 2pcs

Mounting options

  • For horizontal installation

    For horizontal installation

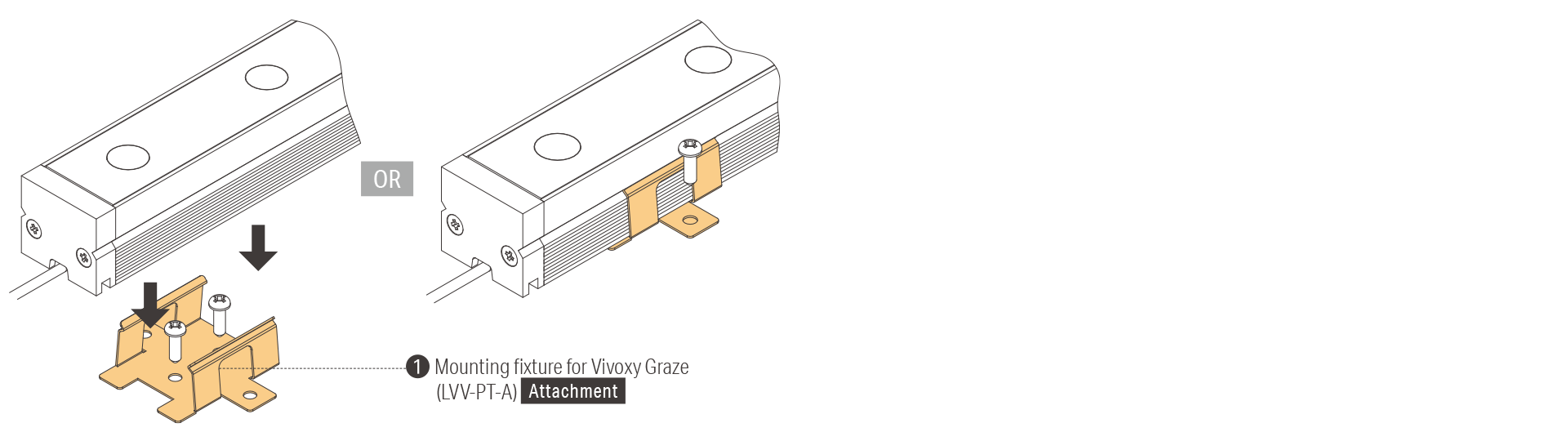

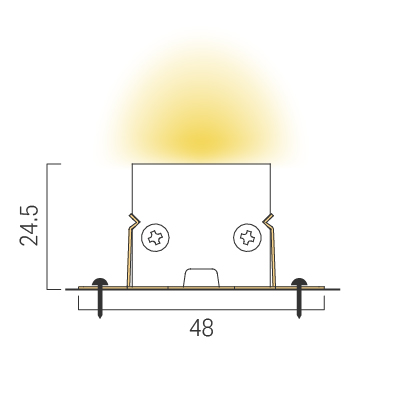

    • 1Mounting fixture for Vivoxy Graze

      LVV-PT-A

      Attached with light fixture
      2 pcs per light fixture
      For extra order 1 pc/bag

  • For variable angle installation

    For variable angle installation

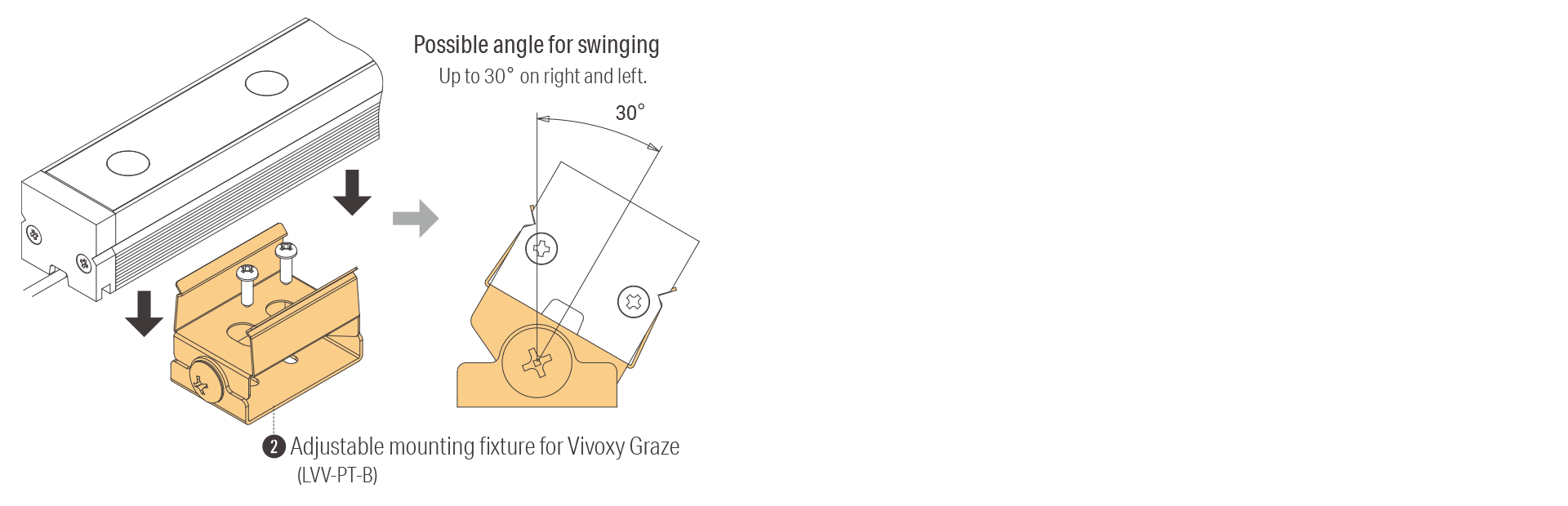

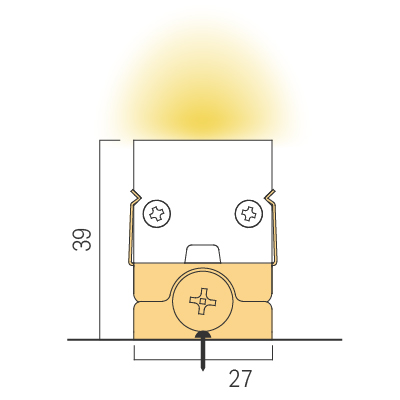

    • 2Adjustable mounting fixture for Vivoxy Graze

      LVV-PT-B

      1 pc/bag
      2 pcs per light fixture is recommended
      For tilting installation

  • For anti glare installation

    For anti glare installation

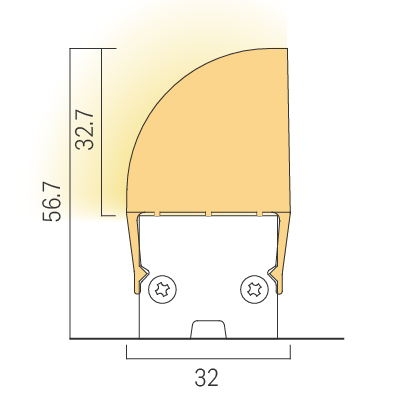

    • 4Louver for Vivoxy Graze

      LVV50-LV0150

      150mm×2 pcs / set
      1 set for each 300mm light fixture
      A dedicated louver can be installed on Luci Vivoxy Graze
      Direct glare in a parallel or vertical direction against the lighting apparatus can be prevented

  • For downward installation

    For downward installation

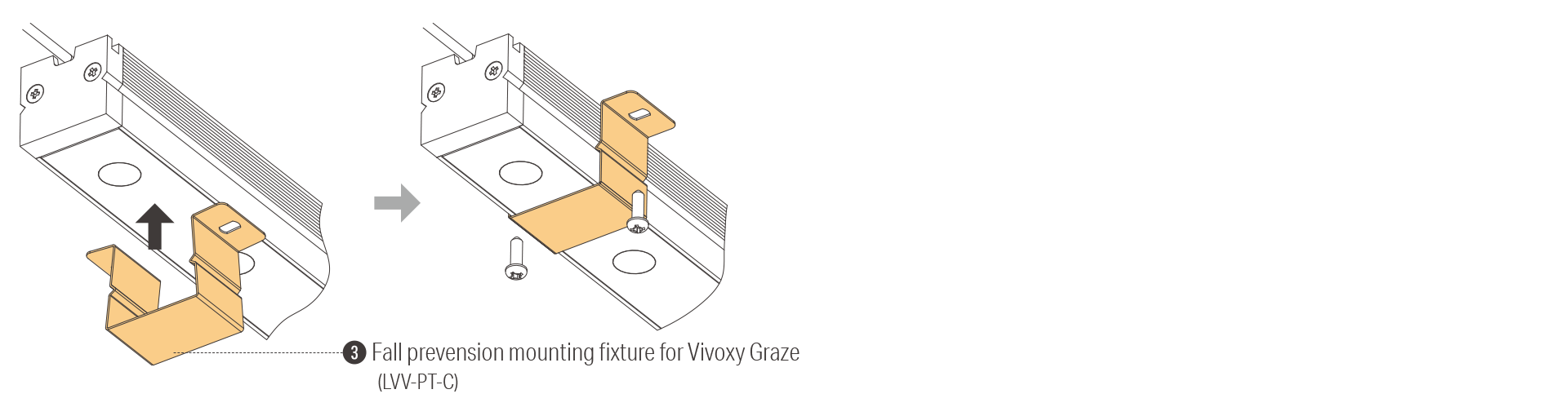

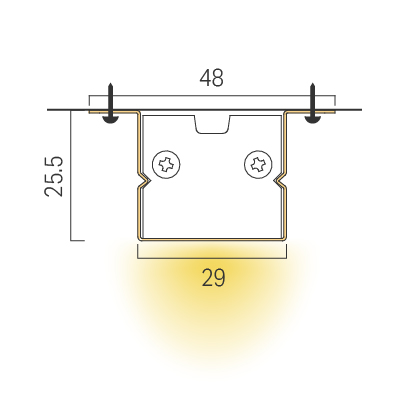

    • 3Fall prevention mounting fixture for Vivoxy Graze

      LVV-PT-C

      1 pcs/bag
      2 pcs per light fixture is recommended
      For downward installation

Accessories

  • 5Joint cable set 5M for Vivoxy GrazeRequired

    CAD-5000-SETB-I

Download

How to Install

Mounting fixture installation

Straight installation

Adjustable fixture installation

Straight installation by 45 degree rail

Fall prevention mounting fixture installation

Curved installation
