LRMUS
RIMiT us
- Only 5.8 mm thick with dot-free light emitting surface
- Custom lengths available in every 25mm increment, up to 1508mm
- Selectable between both or one side cable feed, open end or connector
LRMUS
RIMiT us
Product information

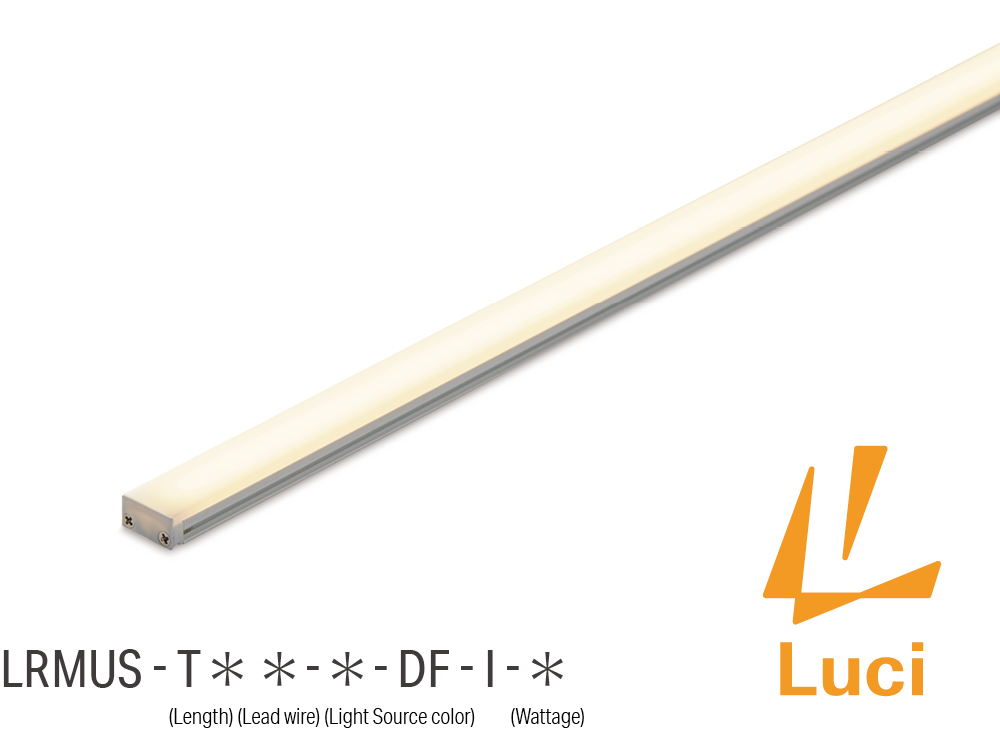

Model No.
LRMUS-T1008W-L27-DF-I-6
Specification
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color | Delivered CCT
-
Max. length per circuit4 m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIndoor
-
CertificationCE
-
MaterialPolycarbonate, Aluminum
Mounting options
-
Bottom fixing / Clip
-
1Mounting clip for RIMiT us
LRMUS-PT-A
5 pcs/bag
-
-

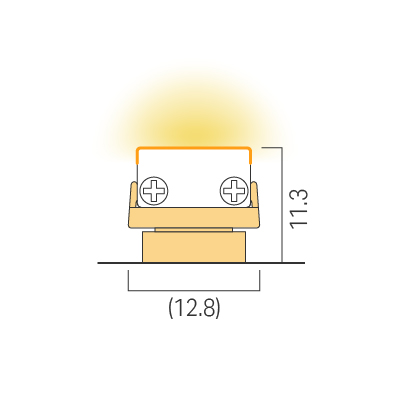

Bottom fixing / Clip + Lift Parts
-
1Mounting clip for RIMiT us
LRMUS-PT-A
5 pcs/bag
-
3Lift Parts for RIMiT
LRM-PT-B
2 pcs/bag
Lift parts must be used with mounting clip
-
-
Bottom fixing / Clip + Magnet
-
1Mounting clip for RIMiT us
LRMUS-PT-A
5 pcs/bag
-
4Magnet Set A
MG-A
5 sets/bag
-
-

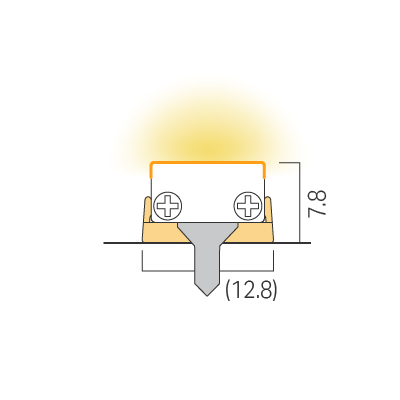

Bottom fixing / direct mounting / Clip
-

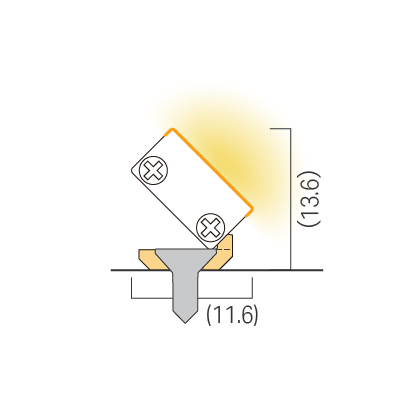

2Mounting clip F for RIMiT
LRM-PT-F
5 pcs/bag
-
-
Bottom fixing / direct mounting / Clip + Lift Parts
-
2Mounting clip F for RIMiT
LRM-PT-F
5 pcs/bag
-
3Lift Parts for RIMiT
LRM-PT-B
2 pcs/bag
Lift parts must be used with mounting clip
-
Accessories
-
6Outdoor cable 3M TR connector for FLEX
CAD-3000-MEFE-O
-
7Clip J for Lead Wire
LRM-PT-J
-
5RIMiT stand
LRM-PT-M
Download
Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.
How to Install

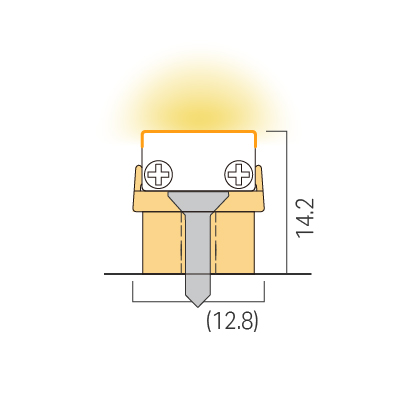

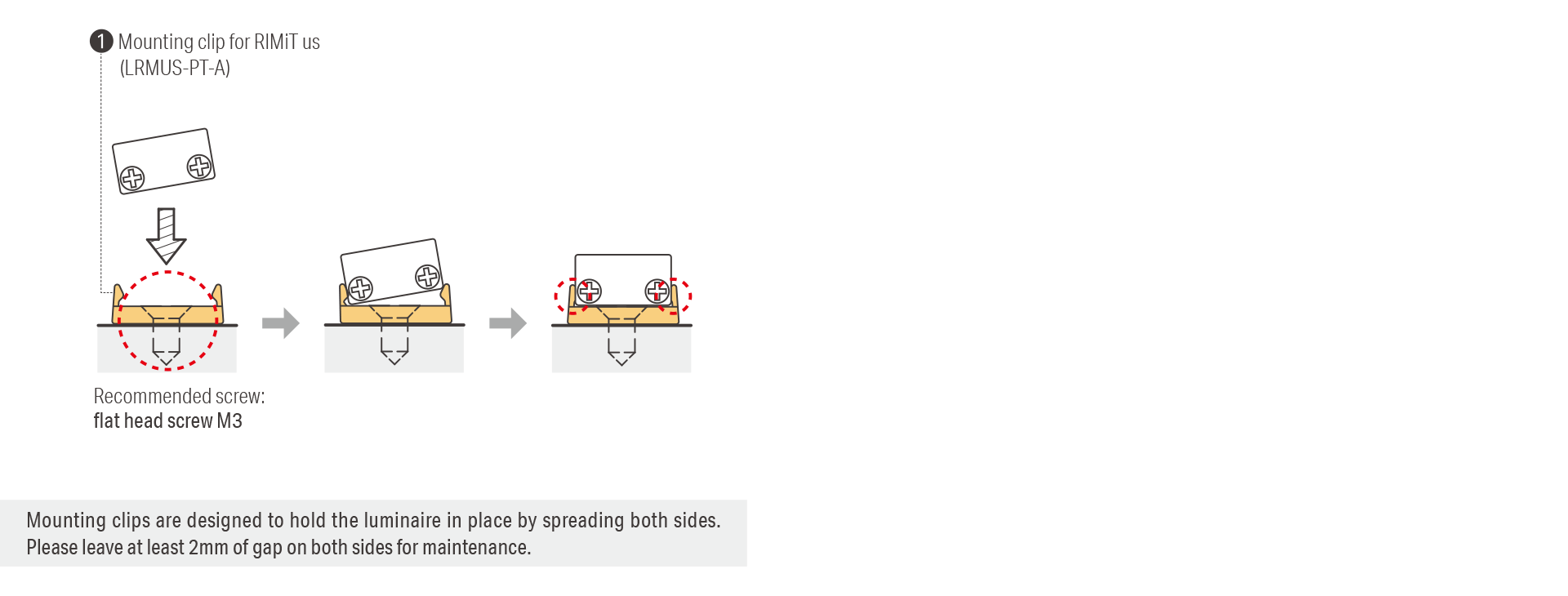

Mounting clip installation

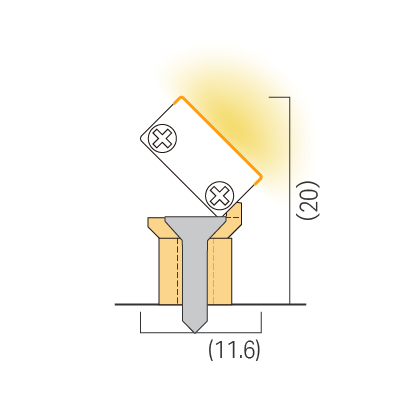

Mounting clip and Lift Parts installation
Installing magnet to the mounting clip
Mounting clip F installation
Mounting clip F and Lift Parts installation
Works
-
Mitsuuroko Green Energy Head Office
Japan
Office Entrance / Lobby / Common area
-
Feather home Model house
Japan
Residence Guest / Living / Bed room
-

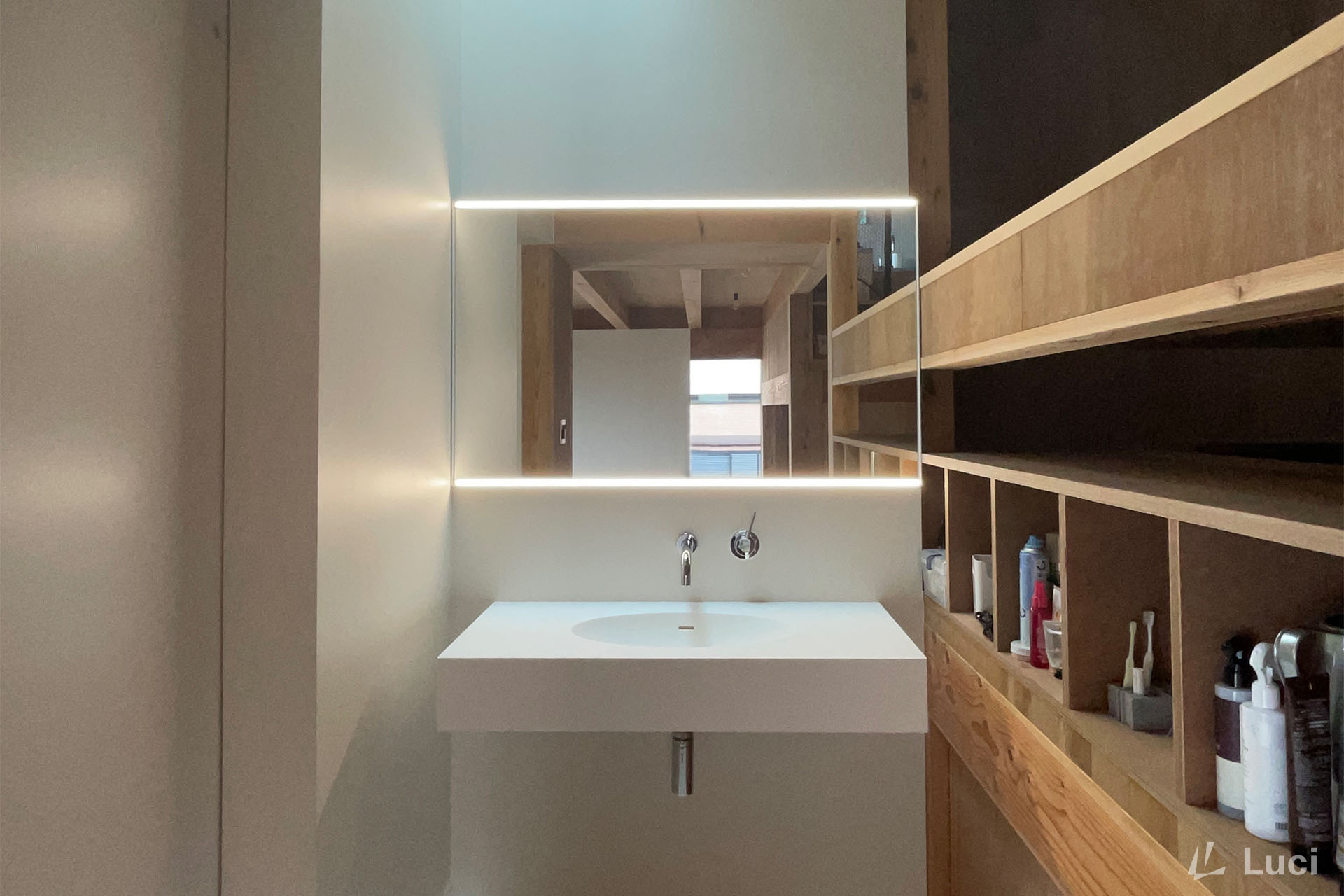

a certain house
Japan
Residence Bath room
-
WAILEA Midosuji
Japan
Retail /service Showroom
