LFY-I SHINseires NEW

SHIN FLEX Indoor

  • 2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting
  • The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT
  • High efficient LED package achieving up to 185 lm/W
  • MacAdam3steps
  • CE
  • Top bend

Product information

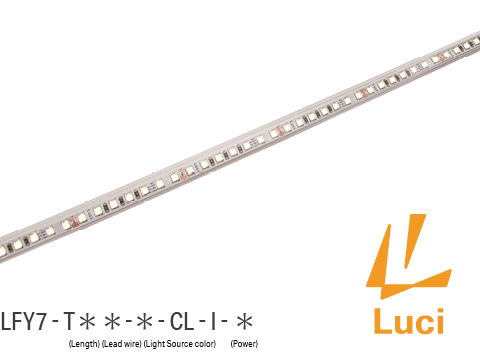

Model No.

LFY7-T1000W-L27-CL-I-10

Detail
LED pitch
Length
Lead wire
Light source color
Wattage

SpecificationPitch20Size1000wattage: 10.8W/m

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color
    Daylight white（D:6500K） 639lm Ra 90
    Natural white（N:5000K） 698lm Ra 90
    White（W:4000K） 667lm Ra 90
    Warm white 3500K（WW:3500K） 639lm Ra 90
    Warm white 3000K（L30:3000K） 579lm Ra 90
    Warm white 2700K（L27:2700K） 563lm Ra 90
    Warm white 2500K（L25:2500K） 459lm Ra 90
    Warm white 2200K（L22:2200K） 546lm Ra 70
    Warm white 2000K（L20:2000K） 546lm Ra 65
  • Max. length per circuit
    5m
  • Dimmable
    Yes (0-10V/1-10V, DMX, DALI, PWM)
  • Environment
    Indoors
  • Certification
    CE, PBT FREE
  • Material
    Soft acrylic
  • Attachments
    End cap 2pcs

Mounting options

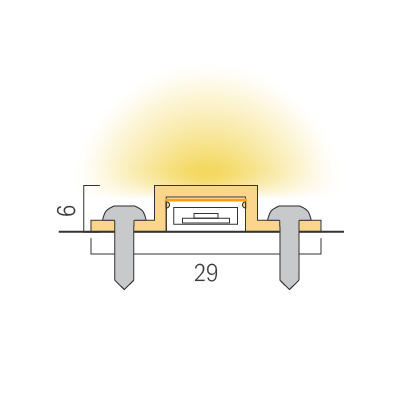

  • Straight installation / Rail

    Straight installation / Rail

    Straight installation / Rail

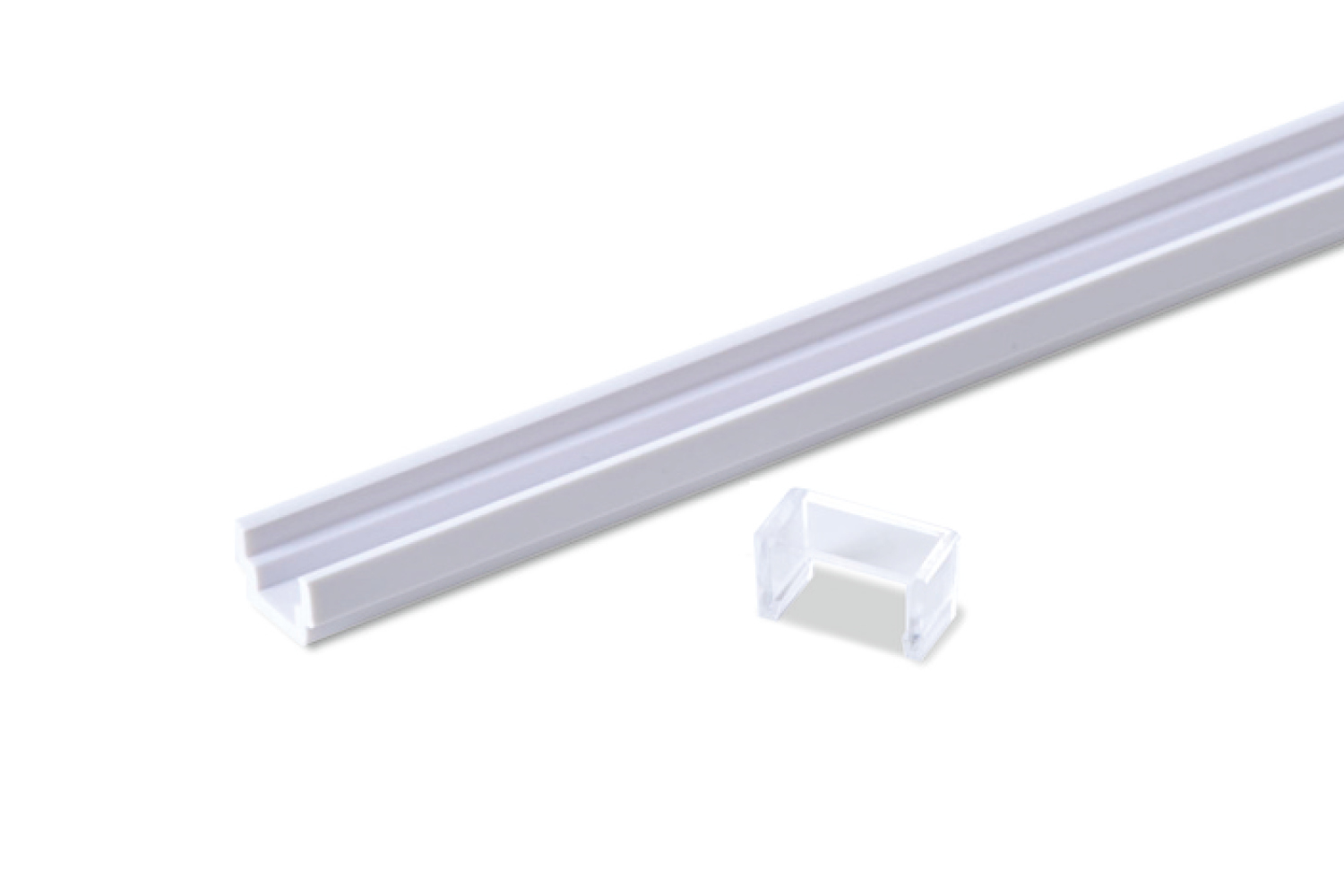

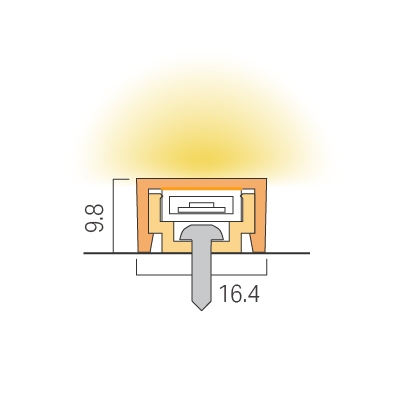

    • Mounting rail 1000 for SHIN FLEX

      1Mounting rail 1000 for SHIN FLEX

      LFY-RL1000

      Mounting clip for rail (5pcs) is included

  • Straight installation / Magnet + Rail

    Straight installation / Magnet + Rail

    Straight installation / Magnet + Rail

    • Mounting rail 1000 for SHIN FLEX

      1Mounting rail 1000 for SHIN FLEX

      LFY-RL1000

      Mounting clip for rail (5pcs) is included

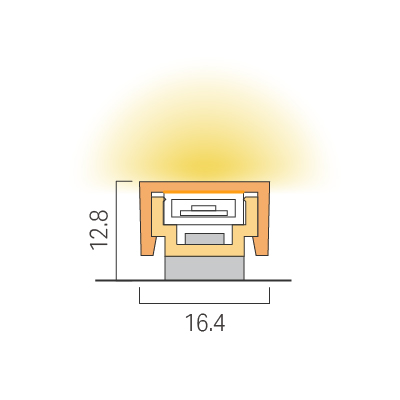

    • Magnet set for rail

      7Magnet set for rail

      MG-R

      4 pcs/bag
      Used for installing light fixture with mounting rail on metal plate
      Metal plate is required by installer

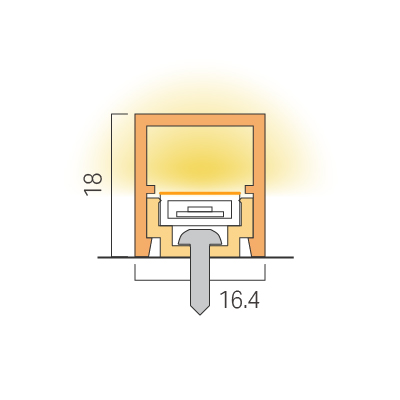

  • Straight installation / Rail + PC Cover

    Straight installation / Rail + PC Cover

    Straight installation / Rail + PC Cover

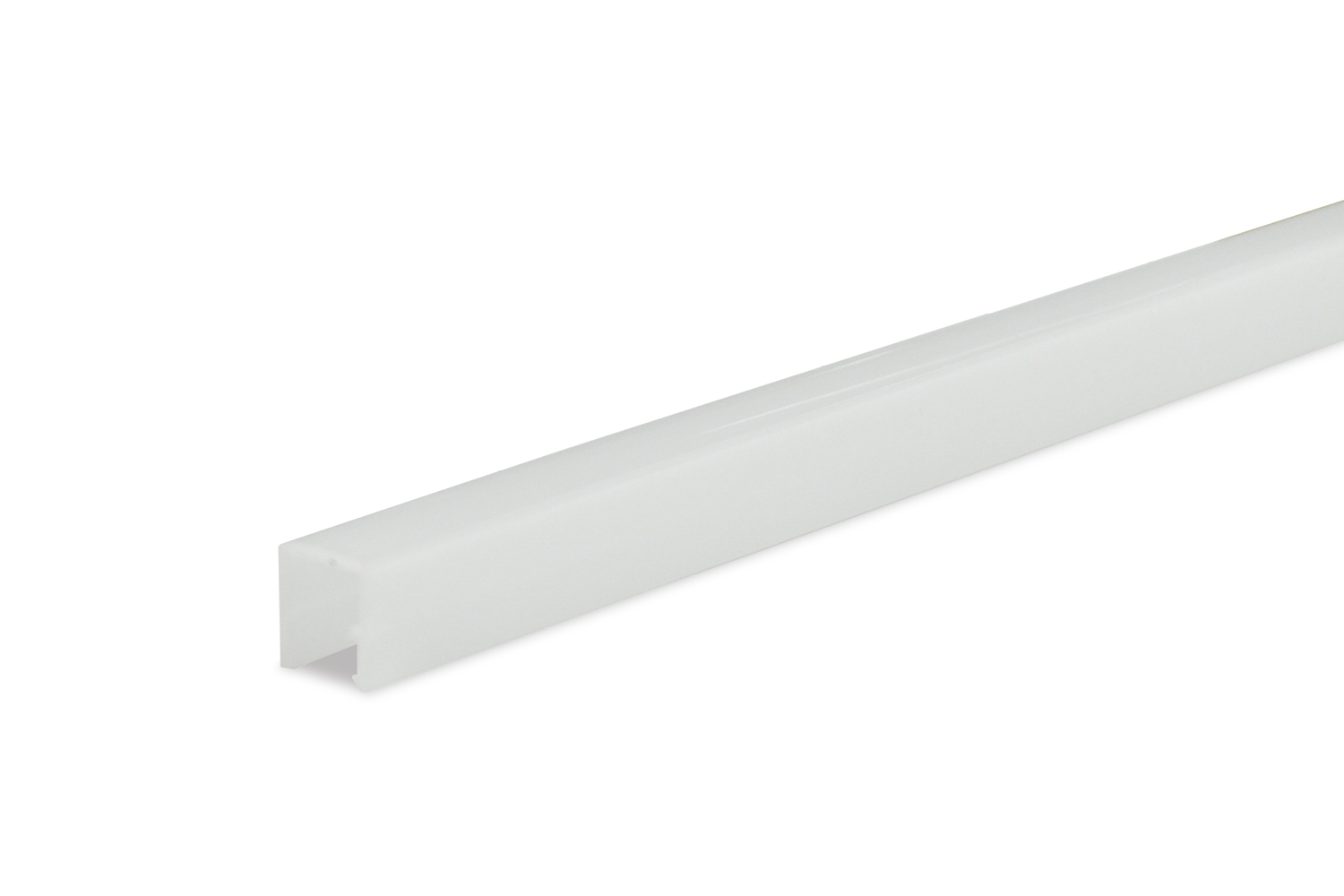

    • SHIN FLEX PC Cover H18mm 1050mm

      6SHIN FLEX PC Cover H18mm 1050mm

      LFY-C1050-A

      Attach to mounting rail
      LFY7: fully diffuse
      LFY18: dark spots are visible

    • Mounting rail 1000 for SHIN FLEX

      1Mounting rail 1000 for SHIN FLEX

      LFY-RL1000

      Mounting clip for rail (5pcs) is included.

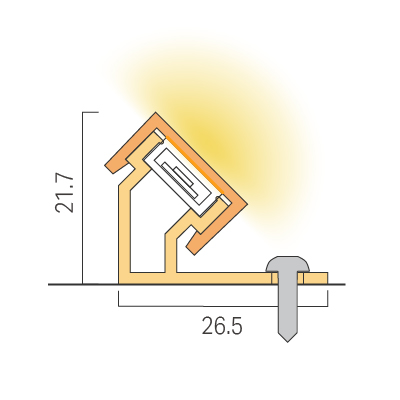

  • Straight installation / 45° rail

    Straight installation / 45° rail

    Straight installation / 45° rail

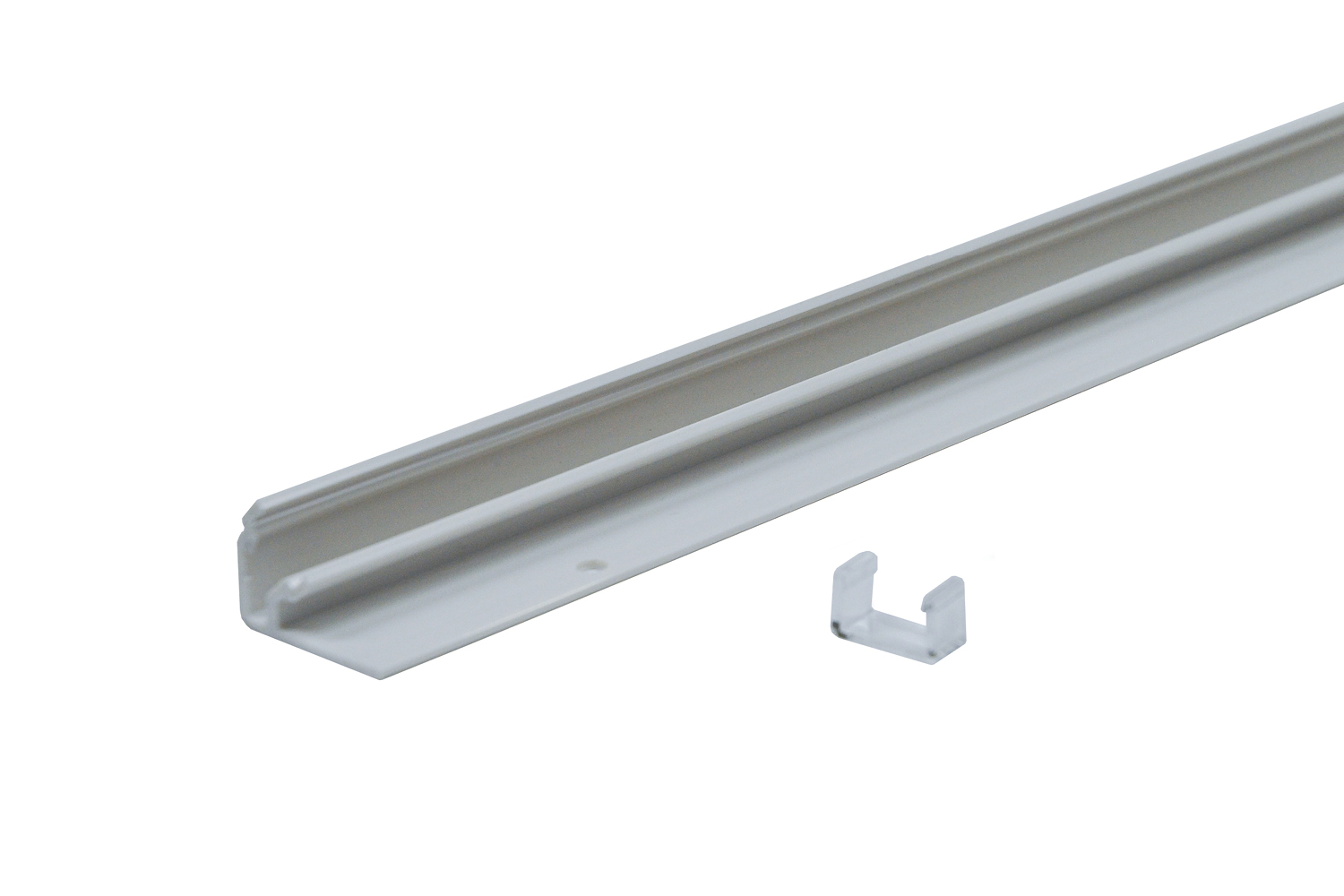

    • 45° Mounting rail 1000 for SHIN FLEX

      245° Mounting rail 1000 for SHIN FLEX

      LFY-45RL1000

      Mounting clip for rail (5pcs) is included.

  • Curved installation / Clip

    Curved installation / Clip

    Curved installation / Clip

    • Mounting clip for SHIN FLEX

      4Mounting clip for SHIN FLEX

      LFY-RC

Accessories

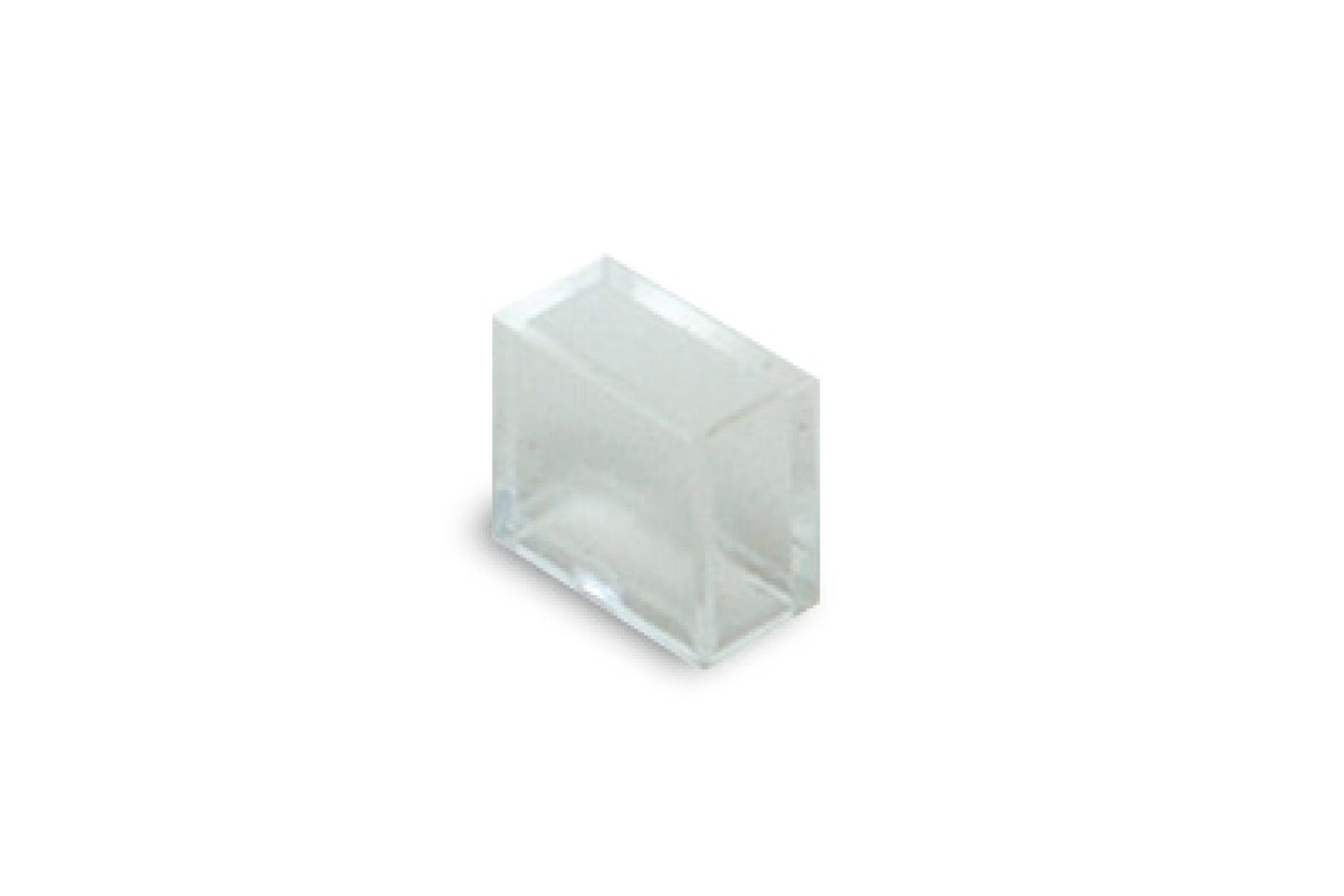

  • End cap for SHIN FLEX

    5End cap for SHIN FLEX

    LFY-EC

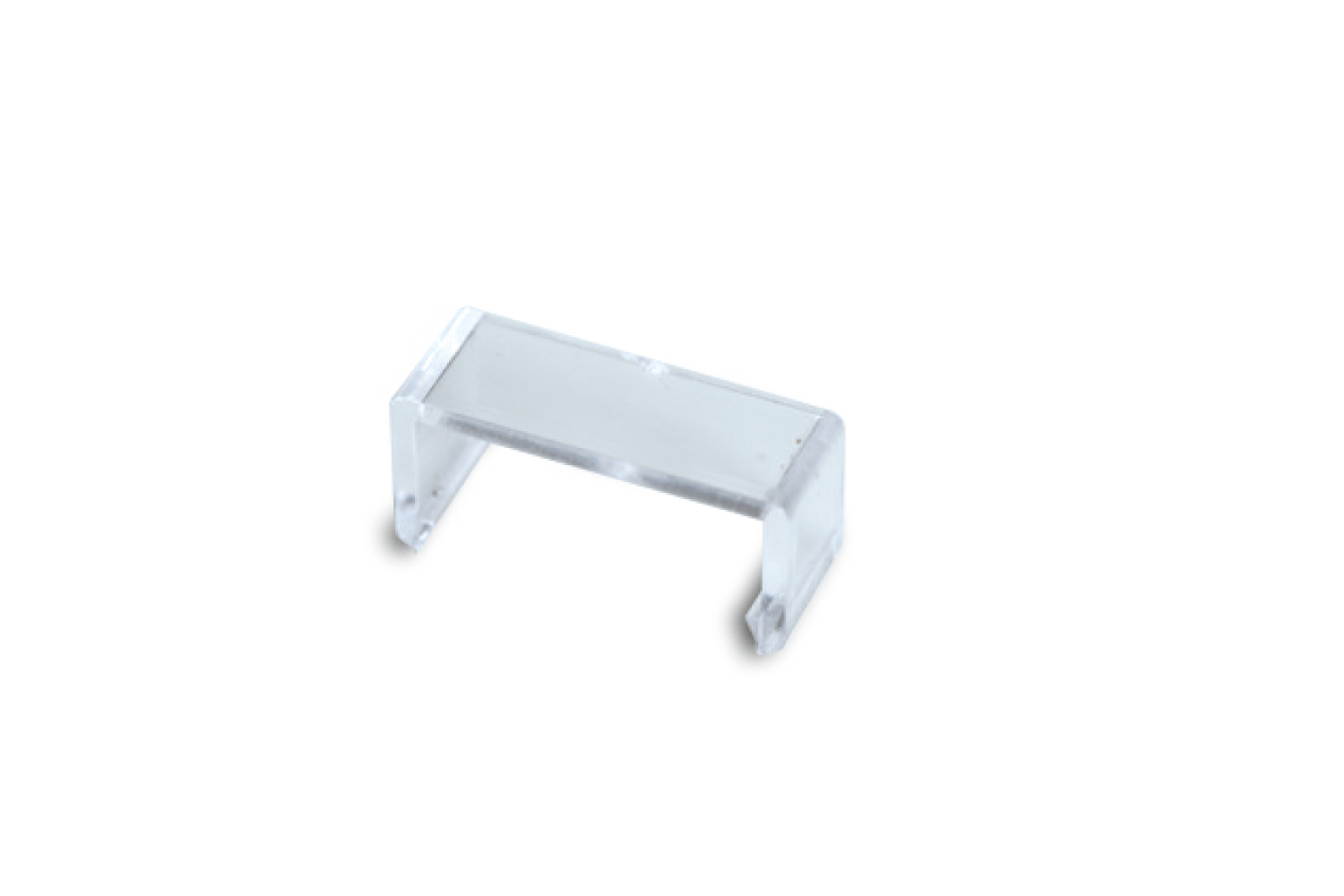

  • Mounting clip for SHIN FLEX rail

    3Mounting clip for SHIN FLEX rail

    LFY-PT

Download

DownloadDownload

How to Install

Straight installation

Straight installation

Installation with mounting rail and PC Cover

Installation with mounting rail and PC Cover

Straight installation by 45 degree rail

Straight installation by 45 degree rail

Curved installation

Curved installation

Works

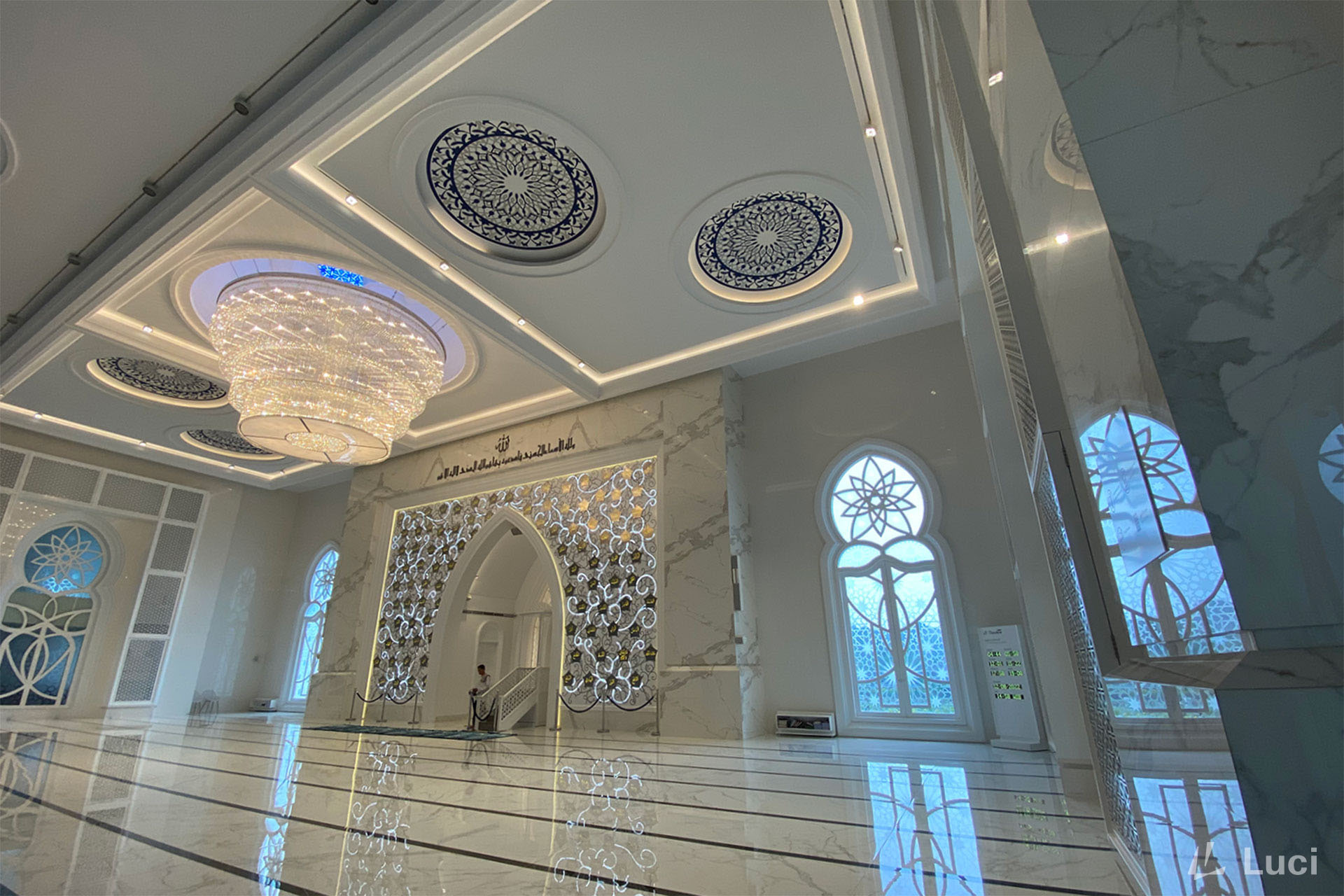

  • GRAND MOSQUE AT THOHIR
